Cylindry Dwustronnego Działania o Dużym Tonażu
- Udźwig od 10 do 1000 ton, skok do 300 mm.
- Zawór bezpieczeństwa po stronie wsuwania zapobiega przypadkowemu nadciśnieniu.
- Na życzenie siłowniki mogą być dostarczane z gwintami lub innymi specjalnymi cechami.
- Dostępne są modele specjalne o ładowności do 2000 ton.
- Inne ruchy trzpienia są dostępne na życzenie.
| Model | Udźwig (ton.) | Skok (mm) |

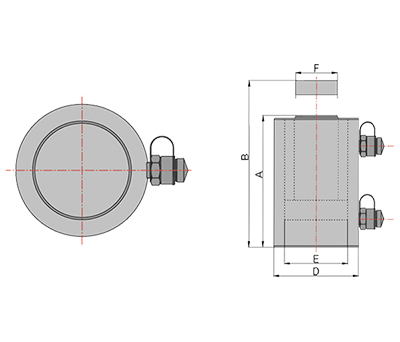

Pojemność Oleju (cm³) | A (mm) | B (mm) | D (mm) | E (mm) | F (mm) | Waga (kg) |
| DA0010250 | 10 | 250 | 491 | 380 | 630 | 70 | 45 | 36 | 10.0 |
| DA0010300 | 300 | 589 | 430 | 730 | 70 | 45 | 36 | 11.0 | |
| DA0020250 | 20 | 250 | 707 | 390 | 640 | 80 | 60 | 45 | 13.0 |
| DA0020300 | 300 | 848 | 440 | 740 | 80 | 60 | 45 | 15.0 | |
| DA0030200 | 30 | 200 | 884 | 364 | 564 | 95 | 75 | 65 | 17.0 |
| DA0030300 | 300 | 1325 | 464 | 764 | 95 | 75 | 65 | 21.0 | |
| DA0050050 | 50 | 50 | 392 | 224 | 274 | 120 | 95 | 70 | 23.0 |
| DA0050100 | 100 | 785 | 274 | 374 | 120 | 95 | 70 | 27.0 | |
| DA0050150 | 150 | 1177 | 324 | 474 | 120 | 95 | 70 | 29.0 | |
| DA0050200 | 200 | 1418 | 374 | 574 | 120 | 95 | 70 | 31.0 | |
| DA0050300 | 300 | 2126 | 474 | 774 | 120 | 95 | 70 | 35.0 | |
| DA0100050 | 100 | 50 | 769 | 239 | 289 | 175 | 135 | 90 | 38.0 |
| DA0100100 | 100 | 1538 | 289 | 389 | 175 | 135 | 90 | 45.0 | |
| DA0100150 | 150 | 2307 | 339 | 489 | 175 | 135 | 90 | 51.0 | |
| DA0100200 | 200 | 2863 | 389 | 589 | 175 | 135 | 90 | 60.0 | |
| DA0100300 | 300 | 4294 | 489 | 789 | 175 | 135 | 90 | 73.0 | |
| DA0200050 | 200 | 50 | 1418 | 217 | 267 | 228 | 190 | 135 | 63.0 |
| DA0200150 | 150 | 4253 | 317 | 467 | 228 | 190 | 135 | 84.0 | |
| DA0200300 | 300 | 8206 | 467 | 767 | 228 | 190 | 135 | 146.0 | |
| DA0250050 | 250 | 50 | 1815 | 261 | 311 | 270 | 215 | 180 | 102.0 |
| DA0250150 | 150 | 5446 | 361 | 511 | 270 | 215 | 180 | 135.0 | |
| DA0250300 | 300 | 10892 | 511 | 811 | 270 | 215 | 180 | 184.0 | |
| DA0300050 | 300 | 50 | 2262 | 341 | 391 | 285 | 240 | 200 | 133.0 |
| DA0300150 | 150 | 6786 | 441 | 591 | 285 | 240 | 200 | 173.0 | |
| DA0300300 | 300 | 13572 | 591 | 891 | 285 | 240 | 200 | 231.0 | |
| DA0400050 | 400 | 50 | 2863 | 341 | 371 | 325 | 270 | 220 | 211.0 |
| DA0400150 | 150 | 8588 | 421 | 571 | 325 | 270 | 220 | 262.0 | |
| DA0400300 | 300 | 17177 | 571 | 871 | 325 | 270 | 220 | 336.0 | |
| DA0500050 | 500 | 50 | 3653 | 376 | 426 | 373 | 305 | 250 | 309.0 |
| DA0500150 | 150 | 10959 | 476 | 626 | 373 | 305 | 250 | 360.0 | |
| DA0500300 | 300 | 21918 | 626 | 926 | 373 | 305 | 250 | 460.0 | |
| DA0600050 | 600 | 50 | 4276 | 397 | 447 | 402 | 330 | 270 | 381.0 |
| DA0600150 | 150 | 12829 | 497 | 647 | 402 | 330 | 270 | 458.0 | |
| DA0600300 | 300 | 25659 | 647 | 947 | 402 | 330 | 270 | 575.0 | |
| DA0800050 | 800 | 50 | 5973 | 438 | 488 | 472 | 390 | 320 | 583.0 |
| DA0800150 | 150 | 17919 | 538 | 688 | 472 | 390 | 320 | 681.0 | |
| DA0800300 | 300 | 35838 | 688 | 988 | 472 | 390 | 320 | 850.0 | |
| DA1000050 | 1000 | 50 | 7261 | 493 | 543 | 530 | 430 | 360 | 830.0 |
| DA1000150 | 150 | 21783 | 593 | 743 | 530 | 430 | 360 | 970.0 | |
| DA1000300 | 300 | 43566 | 743 | 1043 | 530 | 430 | 360 | 1177.0 |
Pomyśl o Bezpieczeństwie
Podane przez producenta wartości obciążenia i skoku są możliwie najbezpieczniejszymi limitami. Użyj tylko 80% tych wartości!!
