TSR Series Hydraulic Bolt Tensioners

  • Working pressure of ultra high pressure hydraulic bolt tensioner is 150/200MPa.
  • Wear resistant cylinder, compact design, reliable performance and long service life.
  • High accuracy, high speed, safe application.
  • Reasonable and simple structure, easy maintenance and high strength alloy materials.
  • Can be customized according to the actual working conditions.
Hydraulic Bolt Tensioners
Hydraulic Bolt Tensioners

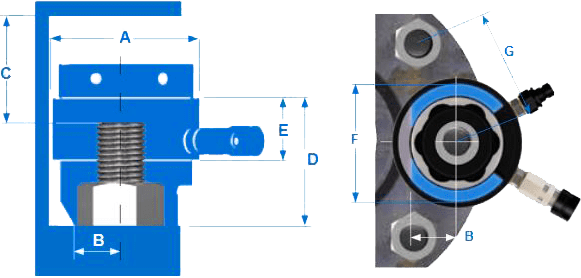

Model Bolt Hexagon Max. Load, kN Dimensions, mm Weight, kg
Inch Metric Inch Metric A B C D E F G
TSR 3/4 M20 1 1/4 30 143.5 66 25 62 34.5 91.5 129 62 1.3
7/8 M22 1 7/16 34 143.5 66 25 62 34.5 91.5 132 62 1.3
TSR1 1 M24 1 5/8 36 284.96 90 31.9 68 43 123.5 167 75 3.5
1 1/8 — 1 13/16 — 284.96 90 31.7 80 46 126.5 174 75 3.5
TSR2 1 M24 1 5/8 36 458.3 109 30 75 38 128.5 172 75 5.5
— M27 — 41 458.3 109 30 75 38 128.5 172 75 5.5
1 1/8 M30 1 13/16 46 458.3 109 30.2 80 41 131.6 180 80 5.5
1 1/4 M33 2 50 458.3 109 36.9 88 44 134.6 186 92 5.5
1 3/8 M36 2 3/16 55 458.3 109 38.3 96 47 137.6 192 96 5.5
TSR3 1 1/4 M33 2 50 665.8 126 36.9 88 44 137 188 96 8.7
1 3/8 M36 2 3/16 55 665.8 126 38.3 96 47 140 194.5 96 8.7
1 1/2 M39 2 3/8 60 665.8 126 42 96 50.4 143.4 196 103 8.7
1 5/8 M42 2 9/16 65 665.8 126 41.1 108 53.5 146.5 207.5 108 8.7
TSR4 1 1/2 M39 2 3/8 60 1003.3 146 42 116 50 149 207 113 13.1
1 5/8 M42 2 9/16 65 1003.3 146 45.5 113 53.5 152.5 213.5 113 13.1
1 3/4 M45 2 3/4 70 1003.3 146 52.1 118 57 156 220 118 13.1
1 7/8 M48 2 15/16 75 1003.3 146 51 114 60 159 226 124 13.1
2 — 3 1/8 — 1003.3 146 52 120 63 162 233 128 13.1
TSR5 2 M52 3 1/8 80 1296.9 174 52 127 63 163 235 140 21.0
2 1/4 M56 3 1/2 85 1296.9 174 58 138 69.5 169 237 148 21.0
TSR6 2 1/4 M56 3 1/2 85 1511.1 184 58 138 69.5 169.4 249 148 20.4
— M60 — 90 1511.1 184 58 138 69.5 169.4 249 148 20.4
2 1/2 M65 3 7/8 95 1511.1 184 63.2 153 76 175 262 153 20.4
2 3/4 M68 4 1/4 100 1511.1 184 76 164 82 181.9 275 164 20.4
TSR7 2 3/4 M70 4 1/4 103 2087.4 220 85 157 82 182 275 173 31.4
2 3/4 M72 4 1/4 105 2087.4 220 85 157 82 182 258.1 173 31.4
3 M76 4 5/8 110 2087.4 220 80 180 89 189 288 180 31.4
TSR8 3 M76 4 5/8 110 2444.5 240 80 180 89 192.5 291.5 180 37.2
— M80 — 115 2444.5 240 80 180 89 192.5 291.5 180 37.2
3 1/4 M85 5 120 2444.5 240 95 190 95 198.5 303.5 190 37.2
3 1/2 M90 5 3/8 130 2444.5 240 102.5 205 101 204.5 316.5 205 37.2
TSR9 3 3/4 M95 5 3/4 135 3258 272 93.6 200 107 211 330 225 51.7
— M100 — 145 3258 272 93.6 200 107 211 330 225 51.7
4 — 6 1/8 — 3258 272 103 210 114 218 345 235 51.7
TSR10 4 1/4 M105 — 150 3814.1 294 112 225 120 228 365 250 68.5
— M110 — 155 3814.1 294 112 225 120 228 365 250 68.5
— M115 — 160 3814.1 294 112 225 120 228 365 250 68.5
4 1/2 — — — 3814.1 294 118 236 126 235 380 270 68.5
