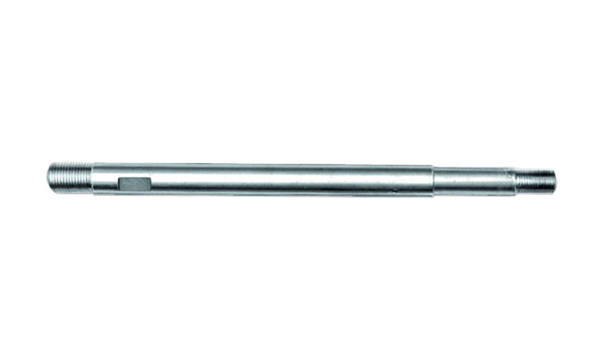

Extenders for pullers

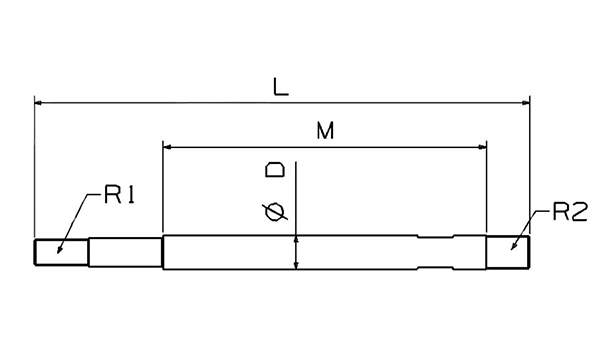

| Ref. | L | R1 | R2 | M | ØD | Puller |
|---|---|---|---|---|---|---|
| 1102-150* | 158 | M10 | 3/8” 24h | 100 | 12 | 1102 / 1103 / 1102S / 1103S |
| 1110-180* | 180 | 1/2” 20h | 5/8” 18h | 100 | 16 | 1110 / 1110S |
| 1110-209H | 209 | 3/4” 16h | 5/8” 18h | 106 | 25 | 1110H |
| 1110-230* | 230 | 1/2” 20h | 5/8” 18h | 150 | 16 | 1110 / 1110S |
| 1110-360 | 360 | 1/2” 20h | 5/8” 18h | 280 | 16 | 1110 / 1110S |
| 1110-460 | 460 | 1/2” 20h | 5/8” 18h | 380 | 16 | 1110 / 1110S |
| 1110-460H* | 460 | 3/4” 16h | 5/8” 18h | 357 | 25 | 1110H |
| 1110-540H | 540 | 3/4” 16h | 5/8” 18h | 437 | 25 | 1110H |
| 1120-209 | 209 | 3/4” 16h | 5/8” 18h | 89 | 25 | 1120 / 1128 / 1120S / 1128S / 1120H |
| 1120-336* | 336 | 3/4” 16h | 5/8” 18h | 216 | 25 | 1120 / 1128 / 1120S / 1128S / 1120H |
| 1120-515 | 515 | 3/4” 16h | 5/8” 18h | 395 | 25 | 1120 / 1128 / 1120S / 1128S /1120H |
| 1120-665 | 665 | 3/4” 16h | 5/8” 18h | 545 | 25 | 1120 / 1128 / 1120S / 1128S / 1120H |
| 1120-855 | 855 | 3/4” 16h | 5/8” 18h | 735 | 25 | 1120 / 1128 / 1120S / 1128S / 1120H |
| 1130-328 | 328 | 1” 14h | 1” 14h | 158 | 32 | 1135 / 1130H |
| 1130-582* | 582 | 1” 14h | 1” 14h | 412 | 32 | 1135 / 1130H |
| 1130-836 | 836 | 1” 14h | 1” 14h | 667 | 32 | 1135 / 1130H |
| 1152-504 | 504 | 1.1/4” 1h | 1.1/4” 1h | 292 | 42 | 1150 / 1152H |
| 1152-820* | 820 | 1.1/4” 1h | 1.1/4” 1h | 608,5 | 42 | 1150 / 1152H |
| 1152-1076 | 1075,5 | 1.1/4” 1h | 1.1/4” 1h | 864 | 42 | 1150 / 1152H |
| 1195-660 | 660 | 1.3/4” 12h | 1.3/4” 12h | 400 | 50 | 1195H |
| 1195-1060* | 1060 | 1.3/4” 12h | 1.3/4” 12h | 800 | 50 | 1195H |
The extenders marked with * are delivered assembled with the puller
