We offer a variety of durable innovative portable flange surfaces, many of our models can be welded, milling, bevel, square, sink hole or cutting end ready configuration. For ease of installation, smaller units can be quickly locked in place using integral mandrels, while larger units can be installed with separate mounting or chucks on which the panel body is mounted.
Flange Facer

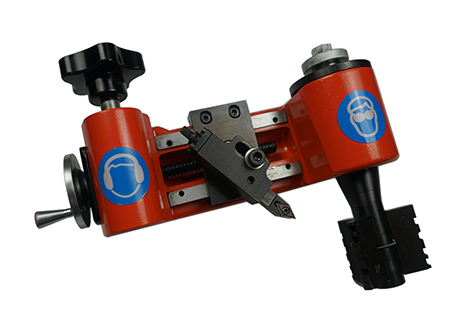

Hand Power Flange Facer MFM350
Facing Diameter: 25.4-350 mm. Clamping Diameter: 25.4-304.5 mm. It can gives machine shop accuracy. Ultra-portable, hand powered flange facer tool makes refacing easy and fast. It can gives machine workshop accurancy.

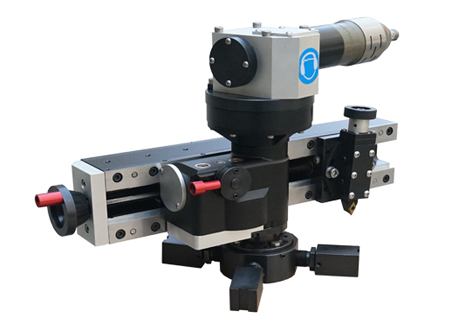

Portable Flange Facer Machine FDG610
Facing Diameter: 50-610mm. Clamping Diameter: 50-610mm. Drive power unit: pneumatic. It gives machine workshop accurancy, reface almost all types of flange faces, seal grooves, RTJ flanges, lens ring etc.

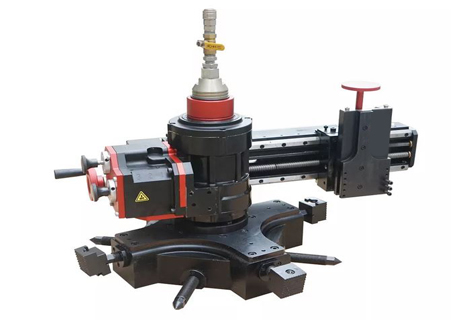

Flange Facer Machine FDG1000
Facing Diameter: 150-1000mm. Clamping Diameter: 150-860mm. Drive power unit: pneumatic. It can gives machine workshop accurancy, for all types of flange facing, RTJ grooves, lens ring etc.

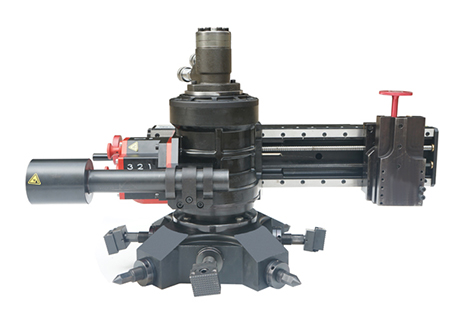

Flange Facer Machine FDG1270
Facing Diameter: 350-1270mm. Clamping Diameter: 350-1100mm. Drive power unit: pneumatic. It gives machine workshop accurancy, reface almost all types of flange faces, RTJ grooves, O ring grooves, lens ring etc.

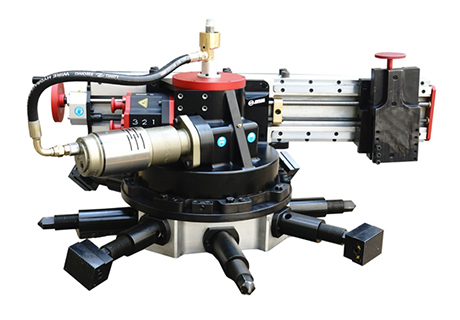

Flange Facer Machine FDG1650
Facing Diameter: 500-1650mm. Clamping Diameter: 500-1500mm. Drive power unit: pneumatic. It gives machine workshop accurancy, for all types of flange facing, RTJ grooves, weld preparation, lens ring, counter boring and heat exchanger repair.

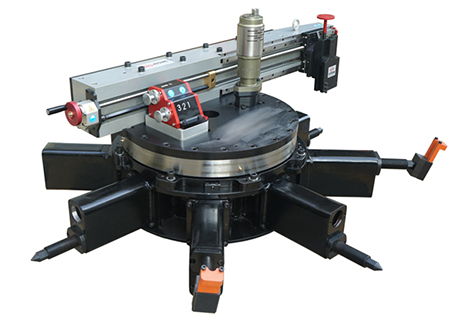

Flange Facer Machine FDG2000
Facing Diameter: 762-2032mm. Clamping Diameter: 762-1804mm. Drive power unit: pneumatic. It can gives machine workshop accurancy, designed to refacing “O” Ring grooves, RTJ and other V grooves, standard and compact flange facings, lens ring etc.

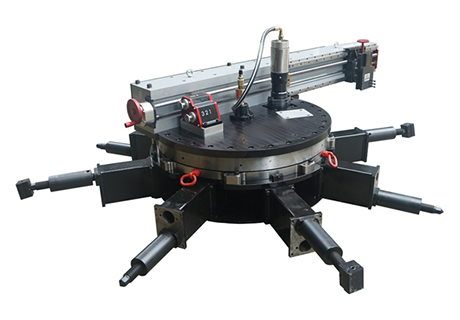

Flange Facer Machine FDG3000
Facing Diameter: 1150-3050mm. Clamping Diameter: 1120-2800mm. Drive power unit: pneumatic. It can gives machine workshop accurancy, designed for raised faces, flat pipe flanges, RTJ flanges and lens ring etc.
