Standard Torque Multipliers

  • Accuracy better than ± 4%.
  • Precision tightening and loosening of all heavy duty fasteners.
  • Low energy input with high torque transfer.
  • The multipliers are equipped with an Anti Wind-Up Ratchet (AWUR), allowing you to do the job easily, efficiently and safely.
  • Precision Manufacturing ensures long life and premier quality.
  • A groove on output Square breaks if over loaded in excess of 20% of its capacity.
  • Highest possible load factor is guaranteed due to design and use of forged components.
Standard Torque Multipliers
Standard Torque Multipliers

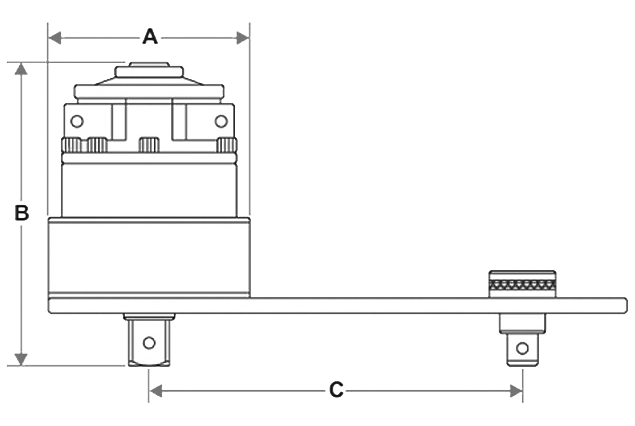

Model Capacity, Nm Ratio Sq. Drive (inch) A, mm B, mm C, mm Weight, kg
Input Output min max
MT2-10000/30 10000 30 ½ 1½ 210 365 — 500 16
MT2-15000/50 15000 50 ½ 2½ 220 360 — 480 25
MT2-20000/72 20000 72 ½ 2½ 342 380 — — 30

A wide range of reaction supports makes it easy to customize the tool for most operations performed.
