Heavy duty beveling machines of the ET/EV series
Heavy Duty Pipe Cutting and Beveling Machine is portable, designed to use in both workshop and on-site. The machine split frame is made from aluminum which is extremely low weight for easy handling and lifting and are versatile in application and can perform many operations. This portable pipe lathes use cold cutting principle that eliminates any heat affected zone.

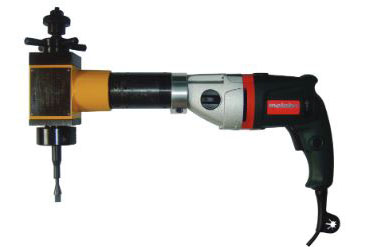

Figure 1-1

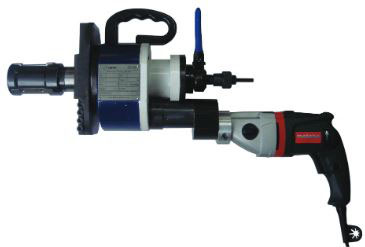

Figure 1-2
Figure 1-1 and Figure1-2 illustrate the main components of the ET, which can bevel up to 20mm wall thickness pipe.

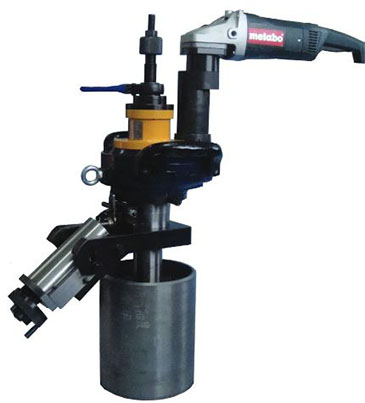

Figure 2-1

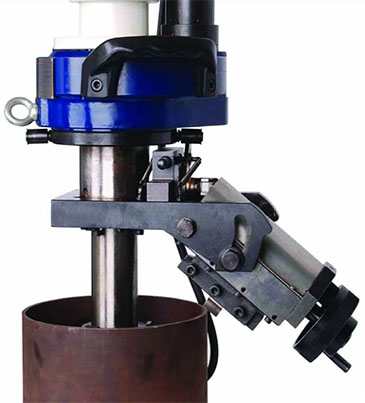

Figure 2-2
Figure 2-1 and Figure2-2 illustrate the main components of the EV, which can bevel up to 70mm wall thickness pipe.
Key features:
1. Quick Setup
· Takes less than 5 minutes to setup
· Adjust the Feed Handle to quickly clamp the beveler inside pipe/tube
· Accurately centered inside pipe
· Takes seconds to install and adjust bevel Bit
2. Easy to use
· Switch on and off by motor switch
· Fine tune using the Scale Wheel to micro feed the bevel
· Compact design allows it to work in small spaces
3. Unique Design
· Ball Bearing and self lubrication design to dramatically extend beveler life
· High strength shaft, and large Clamp Extension Leg contact area to maximize rigidity of the machine
· Special surface treatment to resist wear and erosion
· Exceptional heat treatment for disk and gear allow it to work on any material
Specifications
| Model | Pipe ID, mm | Pipe OD, mm | Wall Thickness, mm | RPM | Input Power, W | Weight, kg |
| ET1 | 18-25 | 21-28 | ≤15 | 58 | 1020 | 5 |
| ET3 | 28-76 | 32-80 | ≤15 | 55 | 1020 | 7 |
| ET6 | 65-169 | 72-182 | ≤20 | 35 | 2000 | 16 |
| ET10 | 80-240 | 90-272 | ≤20 | 16 | 2000 | 37 |
| EV10 | 80-240 | 90-272 | ≤70 | 16 | 2000 | 40 |
| ET14 | 150-330 | 162-352 | ≤20 | 14 | 2000 | 45 |
| EV14 | 150-330 | 152-352 | ≤70 | 14 | 2000 | 48 |
| ET24 | 300-600 | 320-630 | ≤20 | 10 | 2000 | 54 |
| EV24 | 300-600 | 320-630 | ≤70 | 10 | 2000 | 58 |
Electric machine versions:
- The machine is fitted with high performance electromotor with enhanced resistance.
- Voltage: 220V/50Hz
- Motor power: 0.5 – 2.5 kW (depends on type)
Pneumatic machine versions:
- These drives are specially suitable in explosive environments.
- Operating pressure: 0.6 – 1.5 Mpa
- Required air flow: 650 - 1200 l/min
Standart tools
Face alignment blade 0º
| Catalogue No. | Max. wall thickness |
| 10301 | 20 mm |
| 10302 | 75 mm |
Bevelling blade 30º
| Catalogue No. | Max. wall thickness |
| 10303 | 20 mm |
| 10304 | 75 mm |
Bevelling blade 37º
| Catalogue No. | Max. wall thickness |
| 10305 | 20 mm |
| 10306 | 75 mm |
Blade for inner diameter calibration 15º
| Catalogue No. | Max. wall thickness |
| 10307 | 20 mm |
| 10308 | 75 mm |
