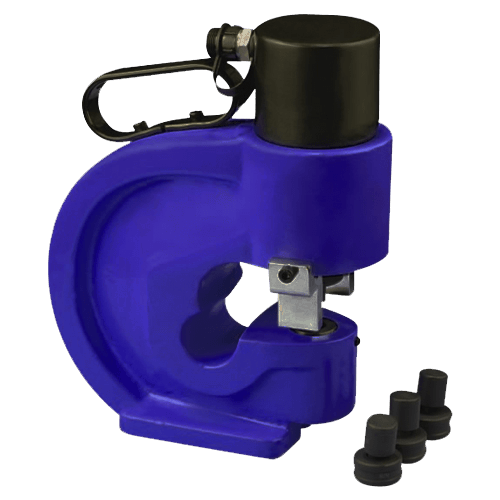

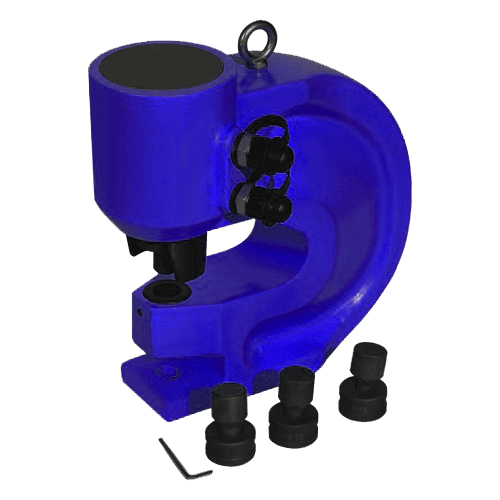

Hydraulic Hole Puncher HHMP Series
This hole punching tool can be applied to L and H style flat copper, busbar, etc. It is commonly used in the electricity industry, construction, and bridge construction, indoor decoration.
Hydraulic Puncher HHMP-60
Hydraulic Puncher HHMP-70
Hydraulic Puncher HHMP-80
This knockout punch set is made of premium alloy steel with high strength and excellent toughness. It has a flat and sturdy base, ensuring not easy to fall. The male connector is designed to connect with your hydraulic pump.
- Strong durable construction.
- Quick set up punches & dies system.
- Flat and clean hole edge.
- Punch dies made of high strength steel.
- Large flat base for added stability.
- Supplied with R2 3/8" male coupler and dust cap.
- Operated by hydraulic pump with rated pressure 700 bar.
| Model | HHMP-60 | HHMP-70 | HHMP-80 |
| Capacity (tons) | 31 | 35 | 50 |
| Power Required | 700 bar | 700 bar | 700 bar |
| Throat depth | 70 mm | 110 mm | 115 mm |
| Maximum diameter | 20.6 mm | 20.6 mm | 25 mm |
| Steel of maximum thickness | 6 mm | 8 mm | 14 mm |
| Copper of maximum thickness | 10 mm | 12 mm | 16 mm |
| Logistics Size | 400x250x150 mm | 330x200x390 mm | 370x225x400 mm |
| Logistics Weight | 21.5 kg | 37.5 kg | 52 kg |
Accessories
Standard mold for HHMP-60: 11.1/14.3/17.5/20.6 mm
Standard mold for HHMP-70: 11.1/14.3/17.5/20.6 mm
Standard mold for HHMP-80: 16/18/22/25 mm
