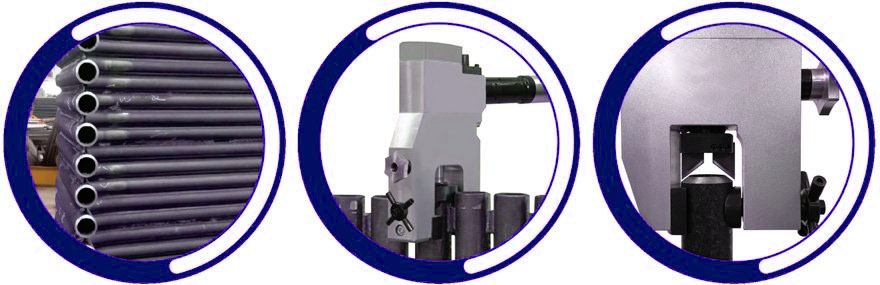

Panel Prep and Pipe Bevelling Machine PM Series

The panel prep and pipe bevelling machine attaches to the tube outside diameter by means of custom or specific o/d clamp type jaws that provide strong clamping action that minimizes chatter and vibration.

They are designed for maximum comfort, efficiency, safety and ease of use. The feed wheel handleenables the operator to comfortably feed the tool during bevelling or facing. The panel prep machines is suitable for small bore heavy wall tubes with a high percentage of chrome, stainless steel, and other exotic alloys.

The panel prep and pipe bevelling machine can be rotated up to 180 degrees to work in any position. The machine can be used for standard bevelling applications and for opposite tubes.

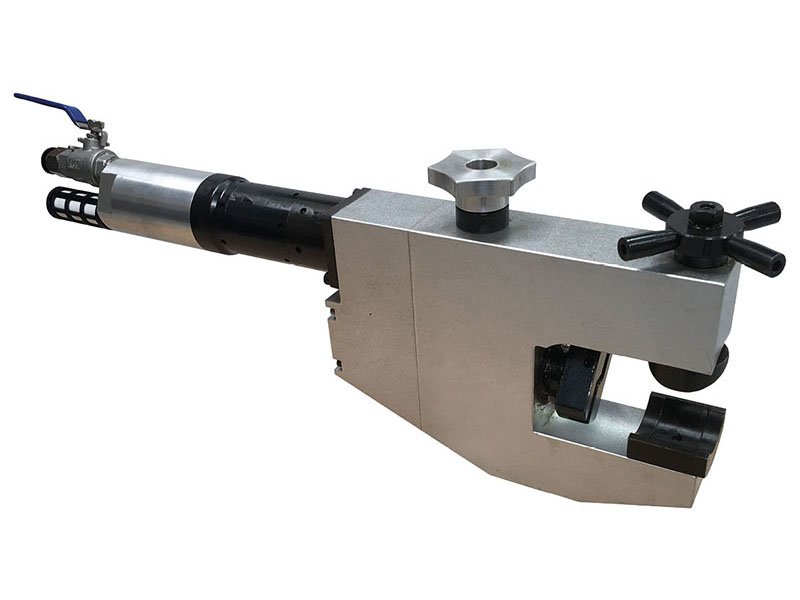

Part No Pneumatic

Model Pipe OD, mm Wall Thickness, mm Electric motor Pneumatic drive ERM
PM-2 8-53 ≤8 220V 50/60Hz 400-600 l/min 58
PM-2.5 20-63 ≤12 220V 50/60Hz 400-600 l/min 55
PM-3 25-73 ≤12 220V 50/60Hz 450-600 l/min 54
PM-3.5 30-83 ≤12 220V 50/60Hz 600-900 l/min 43
PM-4 50-108 ≤12 220V 50/60Hz 600-900 l/min 42

Panel Prep and Pipe Bevelling Machine
