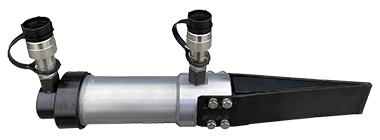

Hydraulic Wedge Jack HFW-40
Maximum pulling force, ton: 40
Minimum clearance for installation: 5 mm
The maximum size of the sliding stroke: 26 mm
Dimensions: 500x85x120 mm
Weight: 8.5 kg
The tool is designed for overclocking flange connections of heavy structures when replacing sealing gaskets, installing plugs, valves and valves on main oil pipelines, gas pipelines, heating plants, water supply and sewerage systems.
In addition, the wedge-shaped jack is widely used in emergency rescue operations, mining (for the separation of whole pieces of rock into parts), felling, assembly and dismantling works (for example, for the destruction of concrete) and other purposes where it is necessary to lift super-heavy loads or the expansion of narrow cracks (seams).
Features:
- High-strength alloy steel construction
- For corrosion protection, it is enameled with oven drying
- Hydraulic return of the rod to its original position
- Chrome-plated plunger is protected from damage
- Ability to work in a limited space
- Used in all industries
- Works in any spatial position
- Tested in excess of standards and requirements
