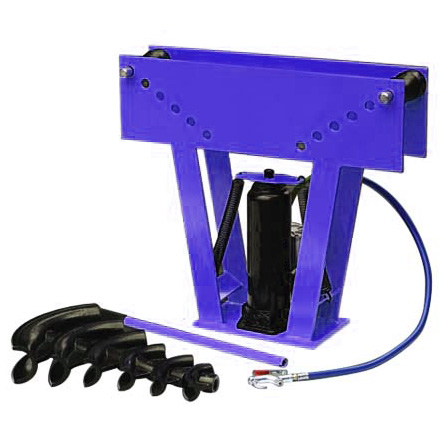

HHW-12Q/16Q Air Hydraulic Pipe Bender
The air hydraulic pipe bender is for precision cold bending of thick-walled pipes (gas, water and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40 & 80) up to 90 degree following GB/T 3091, DIN 2440, EN 10255, BS 1387 standards.
- The air hydraulic pipe bender can be both driven by air compressor and by hand.
- Capable of bending angles from 0 degree to 90 degree on pipes ranging from ½"-3".
- Cold bending, no pre-warming of pipe is required.
- Works quicker with air compressor.
- Rugged construction for use in tough work sites.
- The air hydraulic pipe bender is fast and easy setup, simple to use.
- Supplied in a wooden case with a set of bending shoes and service pack.
| Model | HHW-12Q | HHW-16Q |
| Pipe wall thickness | 2.75-4.5 mm | 2.75-5 mm |
| Max. stroke | 210 mm | 240 mm |
| Hydraulic Ram Output | 12 Ton | 16 Ton |
| Air Pressure | 8 kg / 120 psi | 8 kg / 120 psi |
| Packing size | 630×250×500 mm | 700×210×630 mm |
| Weight | 45 kg | 70 kg |
Accessories
Bending dies for HHW-12Q: ½", ¾", 1", 1¼", 1½", 2"
Bending dies for HHW-16Q: ½", ¾", 1", 1¼", 1½", 2", 2½", 3"
More Information of Pipe Bending Dies
| Bending Dies Size (Inch) | A (mm) | B (mm) | Minimum Bend Radius (mm) | D (mm) | Pipe Schedule | Wall Thickness (mm) | |||
| 1/2" | 115 | 67.5 | 50.2 | 22 | 40 | 2.8 | |||
| 80 | 3.7 | ||||||||
| 3/4" | 131 | 84.5 | 66 | 28 | 40 | 2.9 | |||
| 80 | 3.9 | ||||||||
| 1" | 147 | 96.5 | 75.4 | 34 | 40 | 3.4 | |||
| 80 | 4.5 | ||||||||
| 1 1/4" | 195 | 134 | 108.7 | 43 | 40 | 3.6 | |||
| 1 1/2" | 242 | 162 | 133.5 | 50 | 40 | 3.7 | |||
| 2" | 297 | 238 | 199.2 | 62 | 40 | 3.9 | |||
| 2 1/2" | 380 | 257 | 209 | 79 | 40 | 4.5 | |||
| 3" | 436 | 390 | 335 | 90 | 40 | 4.5 | |||
