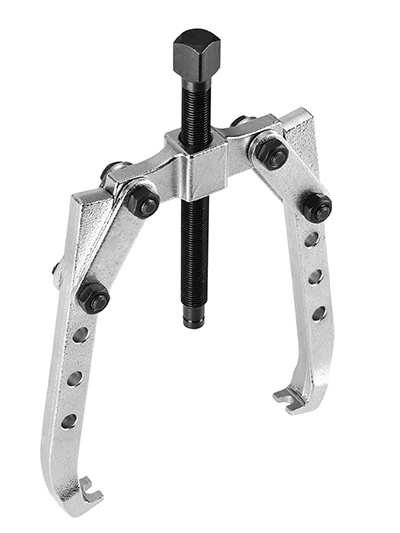

Series 7300
- 2 jaws pullers
- External
- Forged jaws
- Regular jaws (3 holes) and long jaws (4 holes)
- The tip of the jaw is very thin and have a slot to pull the screws

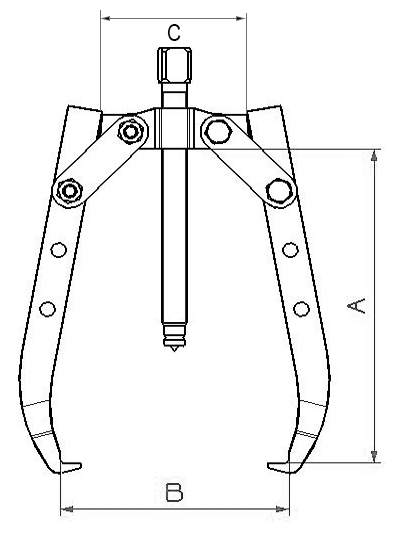

| Ref. | A | B | C | Ton. | Weight |
|---|---|---|---|---|---|
| 7301 | 105 | 110 | 70 | 1 | 0,4 |
| 7301L | 120 | 125 | 70 | 1 | 0,5 |
| 7304 | 185 | 175 | 76 | 4 | 1,3 |
| 7304L | 210 | 220 | 76 | 4 | 1,4 |
| 7307 | 225 | 240 | 113 | 7 | 2,8 |
| 7307L | 270 | 280 | 113 | 7 | 3 |
| 7308 | 225 | 290 | 160 | 7 | 3,2 |
| 7308L | 270 | 330 | 160 | 7 | 3,4 |
