A hydraulic manifold allows you to manually regulate the amount of fluid flow between parts of hydraulic machinery using levers or switches. They act like the switchboard of an electrical circuit in that they allow the operator to control the transfer of power between the components of the system, like pumps and actuators.

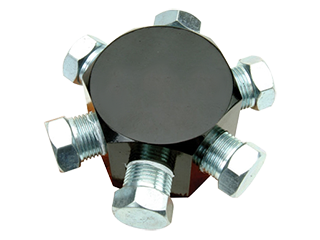

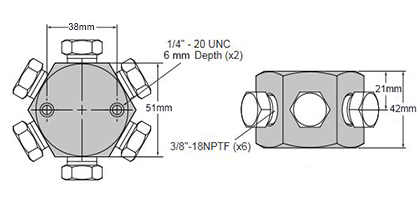

6-port Hexagon Manifold CM6

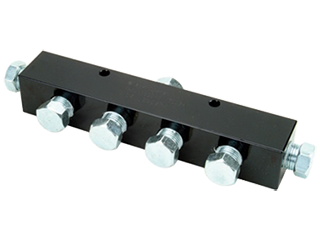

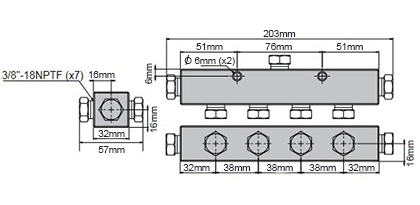

7-port Long Manifold CM7

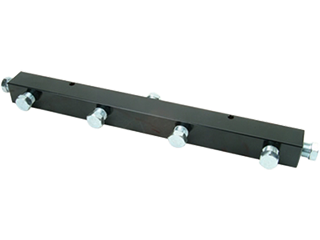

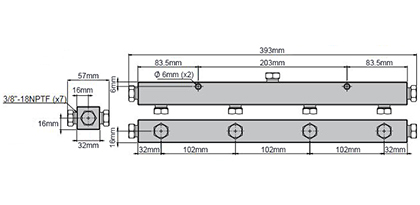

6-port Long Manifold CM14

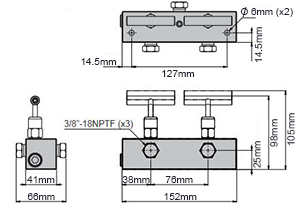

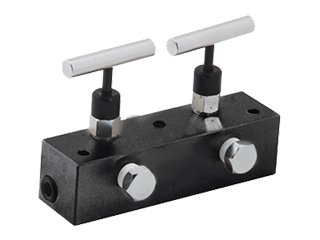

Manifold with Two Needle Valve MFC2

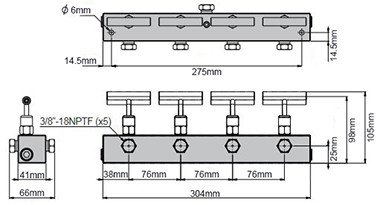

Manifold with Four Needle Valve MFC4
6-port Hexagon Manifold FCMH6
- 3/8”-18 NPTF on all finished ports.
- Controls the flow of 5 hydraulic hoses from one central location.
- Study design fro long product life.
- Convenient carry handle.
- The maximum allowable working pressure is 700 bar (10 000 PSI).
We can also provide you with custom hydraulic manifolds if you send us a PDF file with the hydraulic block design and a 3D drawing.
