Series 1300CTA
- 2 or 3 jaws pullers.
- Forged jaws.
- All the jaws at the same time.
- The self centering puller is safe thanks to it´s jaw lock device in max spread position.
- Offer easier positioning of the puller even in difficult to get at place
- Normal jaws (2 holes), long jaws (3 holes), extralong jaws (4 holes).

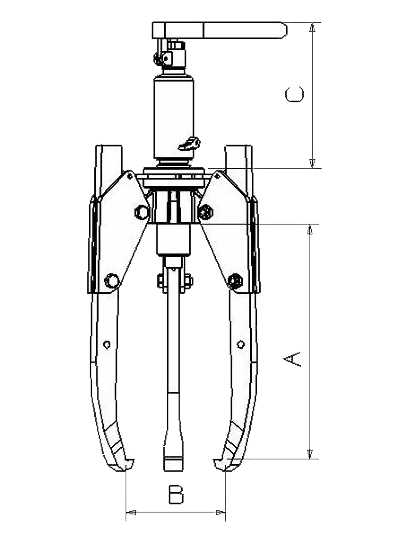

| Ref. | A | B | Position | Ton. | Weigth |
|---|---|---|---|---|---|
| 1306CTA | 300 | 50-310 | 2/3 jaws | 6 | 14,0 |
| 1306CLTA | 380 | 50-360 | 2/3 jaws | 6 | 15,0 |
| 1306CXTA | 460 | 50-410 | 2/3 jaws | 6 | 16,0 |
| 1308CTA | 370 | 70-425 | 3 jaws | 8 | 19,5 |
| 1308CLTA | 485 | 70-480 | 3 jaws | 8 | 21,5 |
| 1308CXTA | 600 | 70-540 | 3 jaws | 8 | 23,5 |
