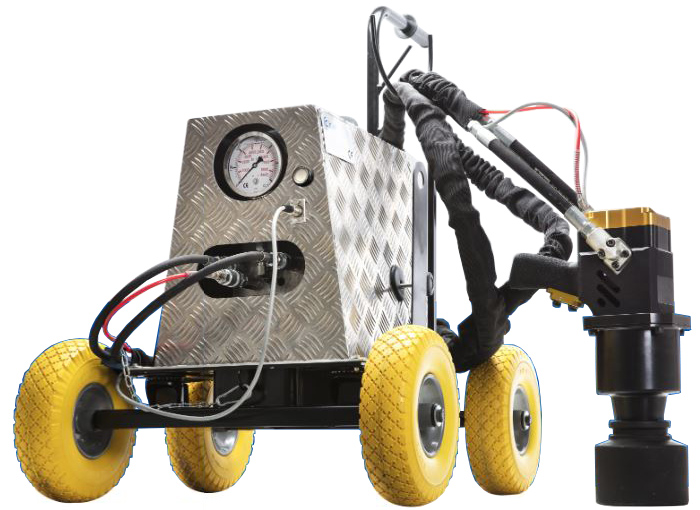

Hydraulic Impact Torque Wrenches
Hydraulic power unit combines speed, power and torque control in a reliable, tough and flexible bolting system.
- Customizable
- Excellent power/weight ratio
- Easy to use
- Wide range of impact wrenches
- Reliable, durable and versatile
- Low maintenance costs
- Stand-alone power unit
| Model | Square Size | Torque Range, Nm | Output Accuracy | Repeatability | Duty Cycle | Length, mm | Weight, kg | Power Unit | |
| min | max | ||||||||
| K100 | 3/4" | 250 | 3000 | ±3% | ±1° | 94% | 265 | 0.5 | STP36 |
| K200 | 1 | 300 | 3500 | ±3% | ±1° | 92% | 265 | 1.73 | STP36 |
| K350 | 1 | 300 | 3500 | ±3% | ±1° | 92% | 260 | 2.97 | STP36 |
| K560 | 1 | 500 | 5500 | ±3% | ±1° | 95% | 270 | 5.79 | STP56 |
| K750 | 1 | 600 | 7500 | ±3% | ±1° | 97% | 280 | 7.48 | STP56 |
| K850 | 11/2" | 600 | 8500 | ±3% | ±1° | 97% | 290 | 12.17 | STP45 |
| K1600 | 11/2" | 1000 | 16000 | ±3% | ±1° | 99% | 385 | 13.7 | STP70 |
Impact Wrench Configuration
Product configuration is more than just a possibility. We would define it almost as a “strategy” designed to meet the needs of each of our individual customers.
Long Anvil
Corner
Hoses 7-10-15 m

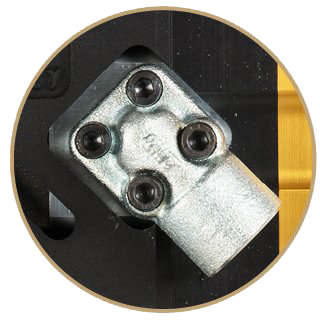

45° Fittings (W)

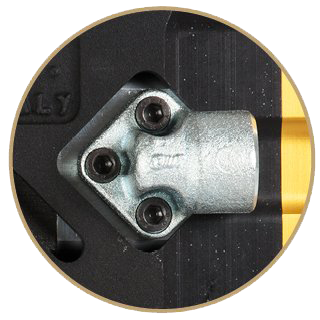

90° Fittings (T)

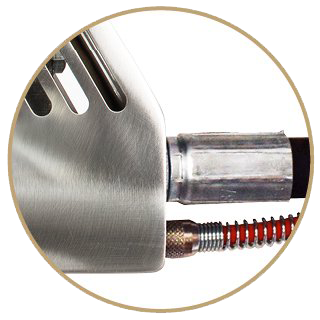

Back (B)
| Model | Long Anvil | Corner | Fittings |
| K100 | Available | Available | W-T-B |
| K200 | Available | Available | W-T-B |
| K350 | Available | Available | W-T |
| K560 | Available | Available | W-T |
| K750 | Available | Available | W |
| K850 | Unavailable | Unavailable | W |
| K1600 | Unavailable | Unavailable | W |

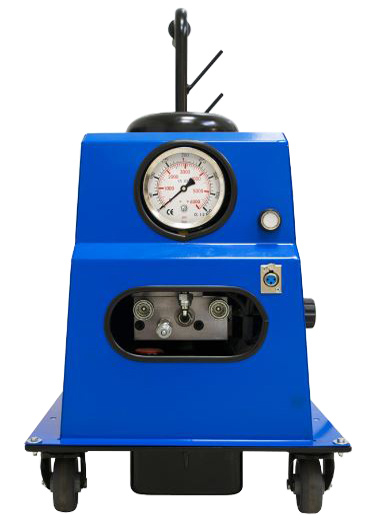

Power Unit Configuration
User-friendly and powerful control units. Accurate pressure regulation ensures tightening torque repeatability. Product configuration is more than just a possibility. We would define it almost as a “strategy” designed to meet the needs of each of our individual customers.
Aluminum Box
High Wheels
Roll-Bar
Suspension System
Heat Exchanger
| Model | Input | Power | Oil tank | Pressure | Dimensions, mm | Weigh, kg |
| STP16 | 230V 50Hz | 3.0 HP | 6.00 l | 70-190 bar | 400 x 600 x 700 | 35.6 |
| STP36 | 380V 50Hz | 3.0 HP | 6.00 l | 70-250 bar | 400 x 600 x 700 | 35.6 |
| STP56 | 380V 50Hz | 5.5 HP | 6.00 l | 80-350 bar | 400 x 600 x 700 | 38.6 |
| STP45 | 380V 50Hz | 5.5 HP | 45.0 l | 150-400 bar | 400 x 600 x 810 | 85.5 |
| STP70 | 380V 50Hz | 7.5 HP | 45.0 l | 200-400 bar | 400 x 600 x 810 | 87.0 |
Use at maximum pressure can only be considered in exceptional cases, for limited periods of time.
Prolonged extreme use may cause damage to the control unit itself.
