The heavy-duty super-structure design provides maximum support for machining accuracy, can by mounted both ID or OD, or directly on the blind flange without the mounting base, such as heat exchanger.

•
•
•

Specifications

• Facing Diameter: 1150-3048mm
• Clamping Range: 1060-2800mm

Features:

• Multiple adjustment alignment methods
• Automatic feed in radial and axial directions

Ask a Question

Download Catalog

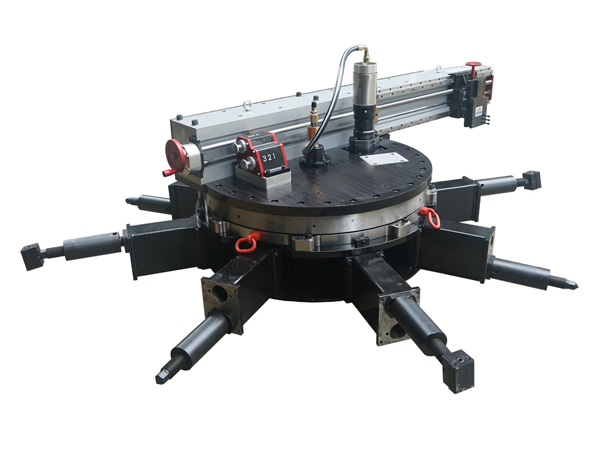

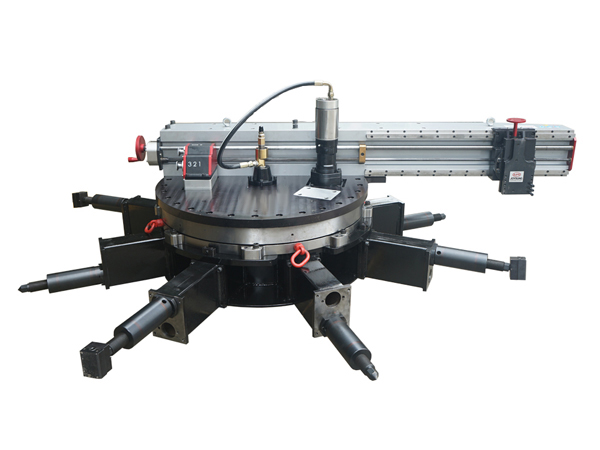

FDG3000 Flange facer is designed with lightweight and high precision consideration of different countries, it Adopts ascendant Processing technology to make sure the best accurateness and high efficiency. It’s widely used for petroleum, Chemical industry, electric plant, ship rebuilding, wind power etc.

Precise and smooth rotary output

Large, industrial grade, high precision rotary bearings provide stable, smooth motion output throughout the entire machine facing range, It can easily handle challenging flange repair applications to meet or restore the demanding requirements of the manufacturer.

Quick and easy set up

Flange facing machine adopt independent design of quick model parts, therefore , it’s fast to mount it and machining. A experienced operator will finish the mounting processing within an hour according the rightful operating process.

Excellent expansion

Tube sheet mounting kit adds a mounted way for heat exchanger repair.
Milling head and distributor hoses for rotary milling.
Back facing kit available for heat exchanger flange back faces in one setup.

Drive Power Unit

Pneumatic & hydraulic drive options available, It can achieve cuts up to a maximum depth of 2 mm (0.079″) on flanges without bolt holes or 0.5 mm (0.02″) with holes.

Feed Rates

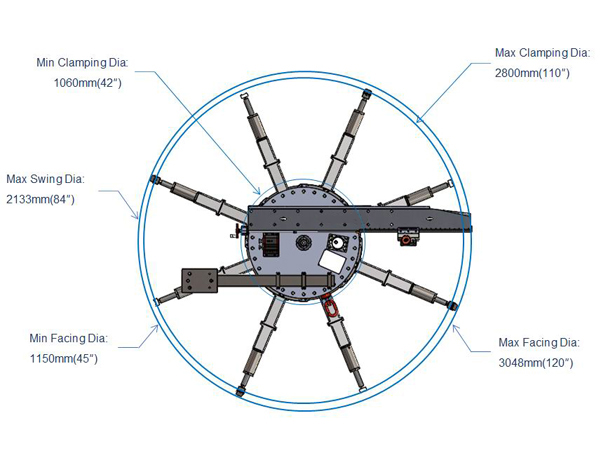

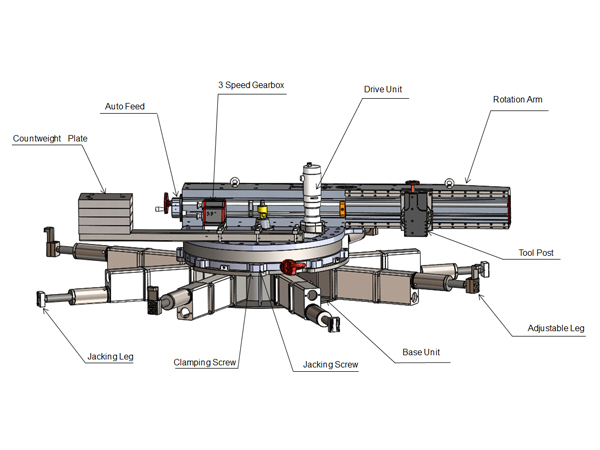

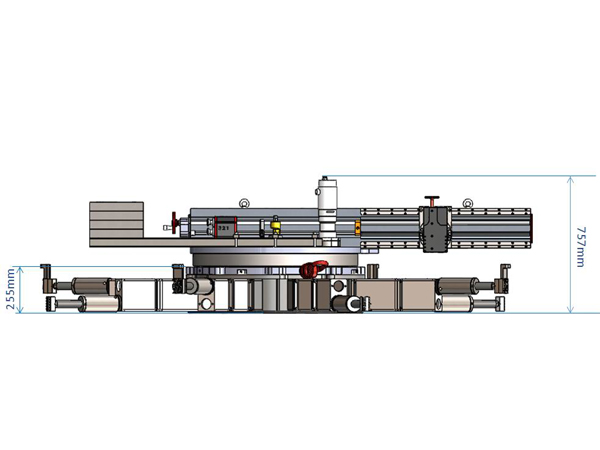

Operational Dimensions & Picture
