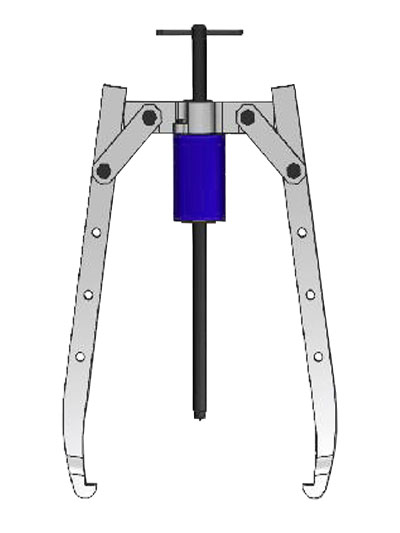

Series 1300H
- Forged and tempered jaws
- Two different types of jaws depending on the length: Long jaws (leg with 3 holes) or Extra Long jaws (leg with 4 holes).

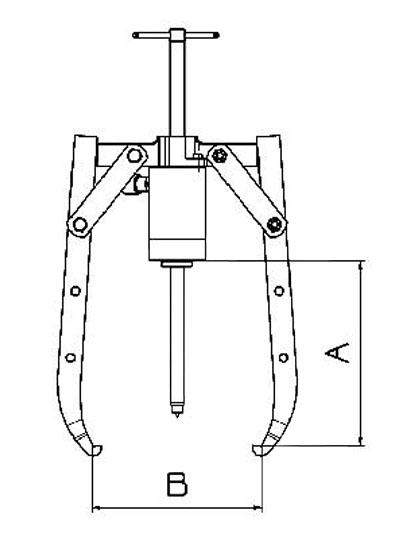

| Ref. | A | B | Hydraulic Part | Ton. | Complete weigth |
|---|---|---|---|---|---|
| 1318H | 320 | 480 | 00918 | 20 | 34,0 |
| 1318HX | 435 | 540 | 00918 | 20 | 36,0 |
| 1330H | 410 | 650 | 00930 | 30 | 49,0 |
| 1330HX | 535 | 720 | 00930 | 30 | 53,0 |
| 1352H | 710 | 980 | 00952 | 50 | 109,0 |
| 1352HX | 860 | 1080 | 00952 | 50 | 115,0 |
