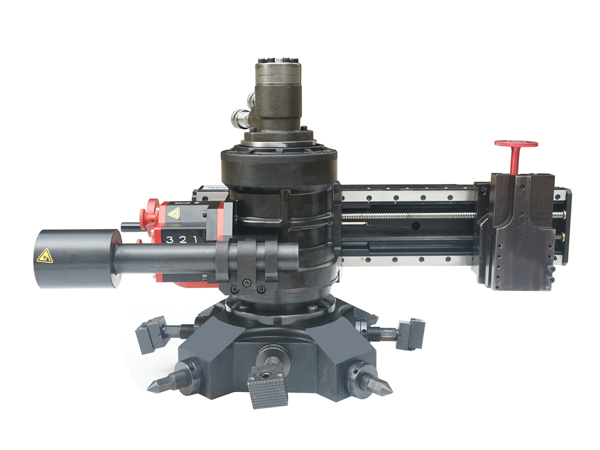

Flange Facer Machine FDG1270
An internally mounted flange facing machine for all types of flange facing, o grooves, RTJ grooves, lens ring, heat exchanger repair etc.
Specifications
- Facing Diameter: 350-1270mm
- Clamping Range: 350-1067mm
Features:
- Quick set adjustable clamping jaws
- Swivel tool post for grooves and bevels
- Two mounting base

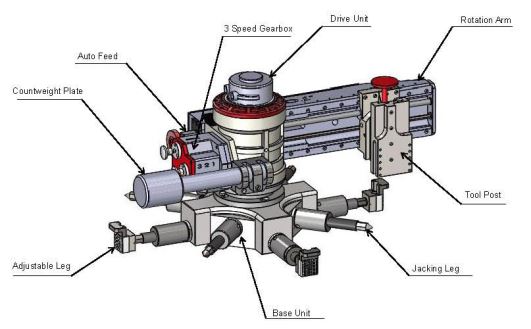

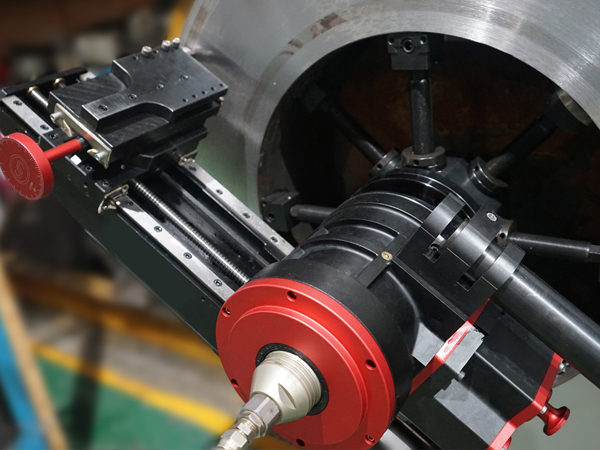

FDG1270 Flange facer is designed with a reinforced center spindle and a rotating cutter arm for achieving stronger stability during cutting.
Superior Machining
It can achieve working without mounting base unit, typical applications for on-site machining of heat exchanger, blind flange, and so on, This provides users with the flexibility to make more cuts including cut “O” Ring grooves, RTJ and other V grooves, standard and compact flange facings, weld preparations, and other surfaces.
Lightweight & Precise Body
Precision machined dovetail ways and adjustable Turcite-B coated gibes provide smooth accurate travel, and can give machine shop accuracy.
Base assembly
Equipped two pieces high strength mounting base unit with steel threaded inserts, and adjustable feet enable the machine to be installed perfectly level and central in any flange from 350 mm to 1270 mm in diameter.
Drive Power Unit
The machine is driven by a 2.7HP pneumatic motor. It can achieve cuts up to a maximum depth of 2 mm (0.079″) on flanges without bolt holes or 0.5 mm (0.02″) with holes.
| Facing Diameter Range | 350-1270 mm (14.0-50.0″) |
| Clamping Diameter Range | 350-1067 mm (14.0-42.0″) |
| Min. Swing Diameter | 890 mm (35.0″) |
| Tool Post Stroke | 80 mm (3.0″) |
| Tool Post Swivel Angle | + / – 30⁰ |
| R.P.M | 0-25 |
| Drive Power Unit-Pneumatic | 2.7hp (2.2kw) |
| Air Consumption / Supply Required | 2.69m³/min |
| Machine Weight | 108 kg |
| Shipping Weight | 200 kg |
| Shipping Dimensions | 900×450×570 mm |
Feed Rates
| In | Out | Up/down | |||
| Gear | mm/rev | Gear | mm/rev | Gear | mm/rev |
| 1 | 0.128 | 1 | 0.151 | 1 | 0.03 |
| 2 | 0.251 | 2 | 0.292 | 2 | 0.06 |
| 3 | 0.591 | 3 | 0.691 | 3 | 0.15 |

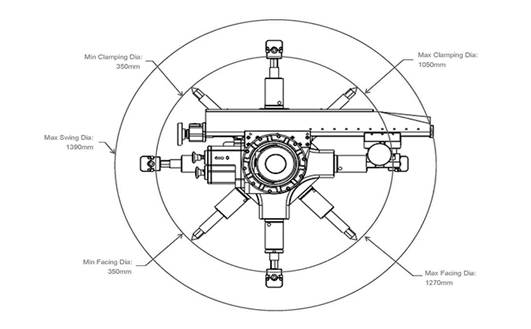

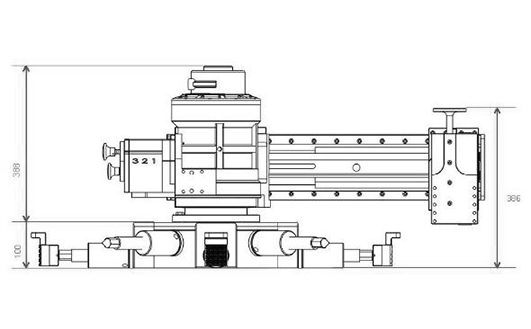

Operational Dimensions & Picture
