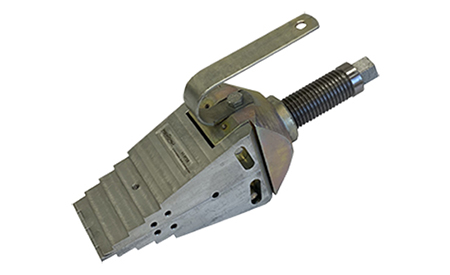

Mechanical Flange Spreaders FSM-15
Mechanical wedge spreaders are recognized the safest flange separation tool on currently market, the design of the first step with interlocking, makes wedge spreaders work safer and simpler.
- Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
- Unique interlocking wedge design: no first step bending and risk of slipping out of joint
- Requires a very small access gap of only 6 mm
- Stepped spreader arm design: each step can spread under full load
- Few moving parts mean durability and low maintenance
| Maximum spreading force | 15.5 ton |
| Tip clearance | 6 mm |
| Maximum spread with step block | up to 120 mm |
| Weight | 7.0 kg |

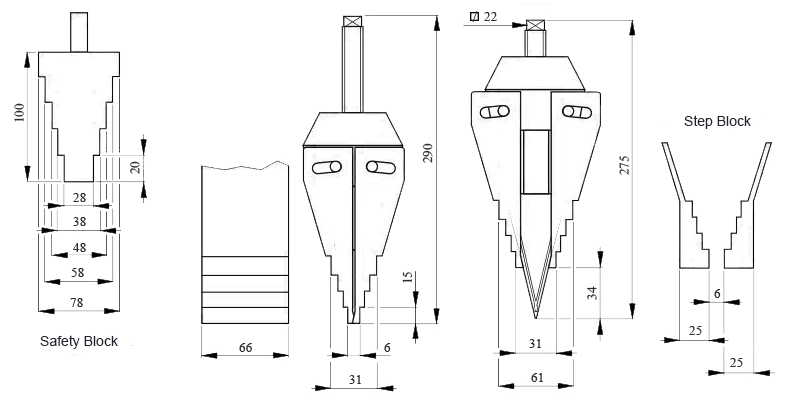

Dimensions (mm):

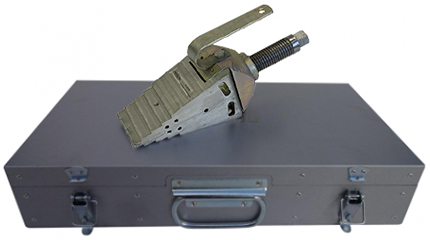

Kit Contains:
Mechanical Flange Spreader Wedge head
Torque Wrench with 22 mm Socket
Safety Block
Pair of Stepped Blocks
Lanyard
Hex Key
Instruction Manual
Toolbox
