Hydraulic Flange Closing Tools FC10TE
Flange pullers are simple, lightweight hydraulic tools used to pull together flanges prior to the application of bolts. Our pullers have been designed utilizing tandem hydraulic cylinders to create a very low profile, this allows the tools to be used on small diameter flanges with limited access as well as larger flanges.
| Capacity, ton | Closing Distance, mm | Min. Bolt Size, mm (inch) | Tool Weight, kg | Kit Weight, kg | Box/Case Dimensions, mm |
| 12 | 600 | 22 (7/8") | 11 | 23.5 | 890 x 570 x 165 |
Kit Components:

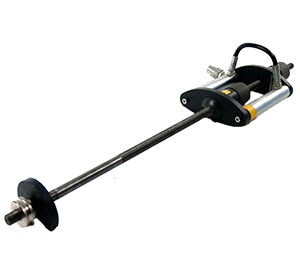

1 x Flange Closing Tool
2 x Hydraulic Cylinders
1 x Hand Operated Hydraulic Pump with Gauge
1 x Hydraulic Pressure Hose
1 x Instruction Manual

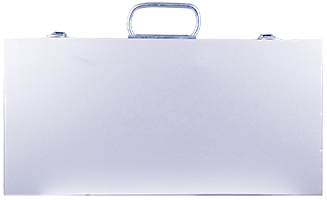

1 x Carry-Case with Protective Foam Inserts
