Series 1100S-1200
- Pullers series 1100S fits with series 1200 and 2200.

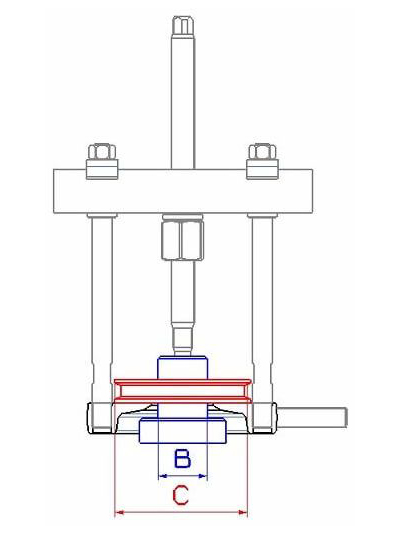

- The size of the pulley to be pulled out is taken by the measurement C, not B.
- To extract ther exterior parts, the thread of the spindle must be under the body.
| Ref. | B min. | B max. | C | Weigth |
|---|---|---|---|---|
| 1102S-1202A/2202A | 55 | 100 | 90 | 1,7 |
| 1103S-1203A/2203A | 80 | 100 | 130 | 2,4 |
| 1110S-1204B/2204B | 108 | 152 | 175 | 5,7 |
| 1115S-1206B/2206B | 134 | 220 | 230 | 9,2 |
| 1120S-1206B/2206B | 210 | 220 | 290 | 15,0 |
| 1128S-1206B/2206B | 217 | 220 | 302 | 18,0 |
| 1128S-1208B | 210 | 418 | 285 | 25,0 |
