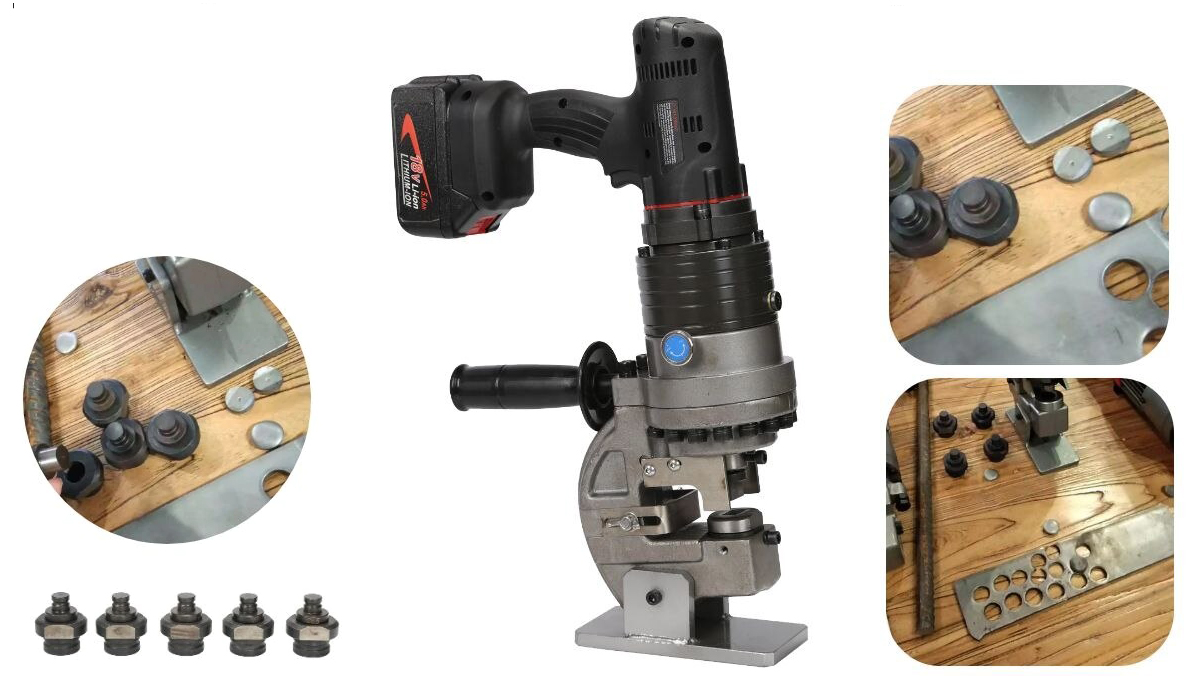

Portable Punching Machine PMHP Series
Designed for punching holes in corners, channels and current-carrying wires with maximum accuracy, and also allows you to significantly reduce the time to get a hole compared to drilling. The hydraulic cylinder used in the construction ensures the rapid execution of the cycle from punching the hole to extracting the punch from the material.
| Model | PMHP-16 | PMHP-20 |
| Voltage | 18V 4.0Ah | 18V 4.0Ah |
| No-load power | 140W | 200W |
| Punching speed | 2.5-3S | 5-8S |
| Maximum diameter | 16 mm | 20 mm |
| Maximum thickness | 3.2 mm | 6.0 mm |
| Dimensions | 460x270x115 mm | 400x195x165 mm |
| Weight | 8 kg | 11 kg |
| Logistics Size | 580x500x170 mm | 575x195x270 mm |
| Logistics Weight | 15 kg | 21 kg |
Accessories
Standard mold for PMHP-16: 6.5/9/11/13/16 mm
Standard mold for PMHP-20: 6.5/9/13/17/20.5 mm
