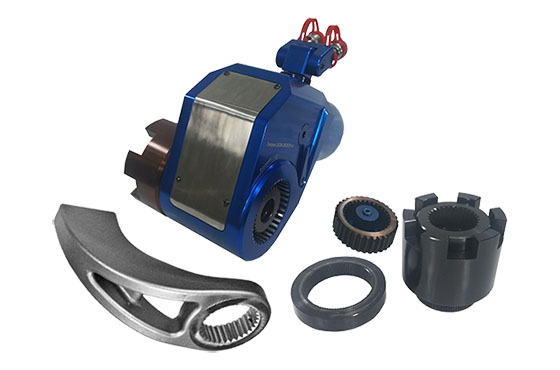

RSS Series Square Drive Hydraulic Torque Wrench
- In line reaction arm
- Less moving parts
- Hands-off operation
- Anti-back lash mechanism
- Universal design to fit every application
- Easy changeable square & hex drives
- Torque pressure table graved on body
- Designed for heavy duty application
- Simple drive assembly, less downtime
| Model |
Square Size |
Torque Range, Nm |
Output Accuracy |
Repeatability |
Duty Cycle |

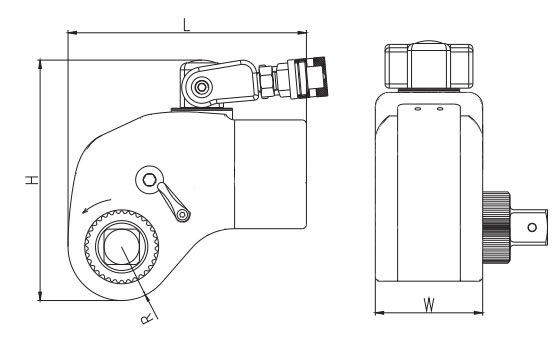

Dimensions, mm |
Weigh, kg |
| min |
max |
H |
L |
R |
W |
| RSS-1000 |
3/4" |
130 |
1000 |
±3% |
±1° |
100% |
126 |
78 |
24 |
49 |
1.5 |
| RSS-4600 |
1 |
450 |
4600 |
±3% |
±1° |
100% |
133 |
176 |
40 |
74 |
4.9 |
| RSS-7500 |
11/2" |
730 |
7500 |
±3% |
±1° |
100% |
247 |
212 |
48 |
85 |
8.3 |
| RSS-10500 |
11/2" |
1020 |
10500 |
±3% |
±1° |
100% |
225 |
225 |
49 |
90 |
9.0 |
| RSS-16500 |
11/2" |
1500 |
16500 |
±3% |
±1° |
100% |
235 |
237 |
54 |
100 |
11.5 |
| RSS-19000 |
21/2" |
1900 |
19000 |
±3% |
±1° |
100% |
254 |
298 |
64 |
114 |
17.5 |
| RSS-37600 |
21/2" |
3760 |
37600 |
±3% |
±1° |
100% |
259 |
298 |
65 |
134 |
35.6 |
| RSS-80000 |
21/2" |
8000 |
80000 |
±3% |
±1° |
100% |
294 |
367 |
79 |
167 |
62.4 |
