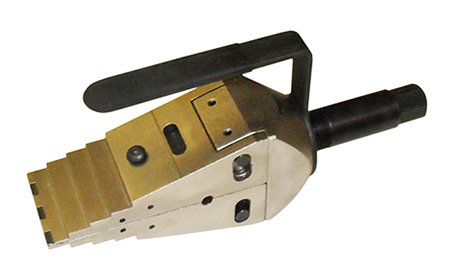

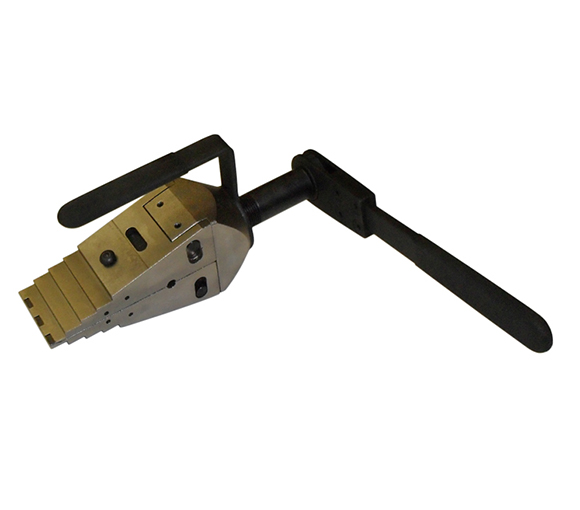

Mechanical Flange Spreaders FSM-9
Mechanical wedge spreaders are recognized the safest flange separation tool on currently market, the design of the first step with interlocking, makes wedge spreaders work safer and simpler.
- Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
- Unique interlocking wedge design: no first step bending and risk of slipping out of joint
- Requires a very small access gap of only 6 mm
- Stepped spreader arm design: each step can spread under full load
- Few moving parts mean durability and low maintenance
| Maximum spreading force | 9.5 ton |
| Tip clearance | 6 mm |
| Maximum spread with step block | up to 120 mm |
| Weight | 6.5 kg |

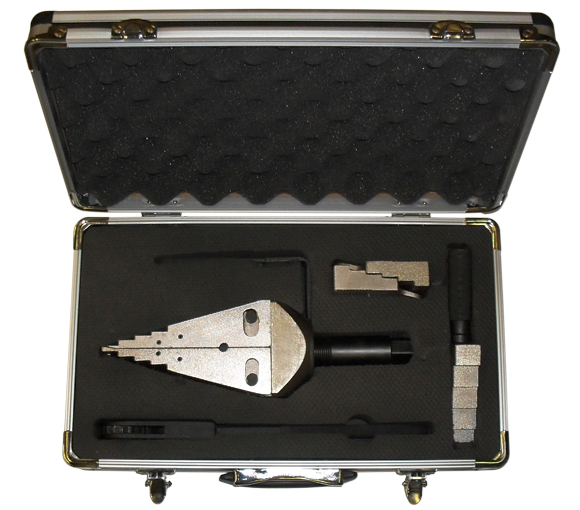

The kit includes a safety block and a ratchet spanner. According to custom orders, it is equipped with step block and/or a safety rope.

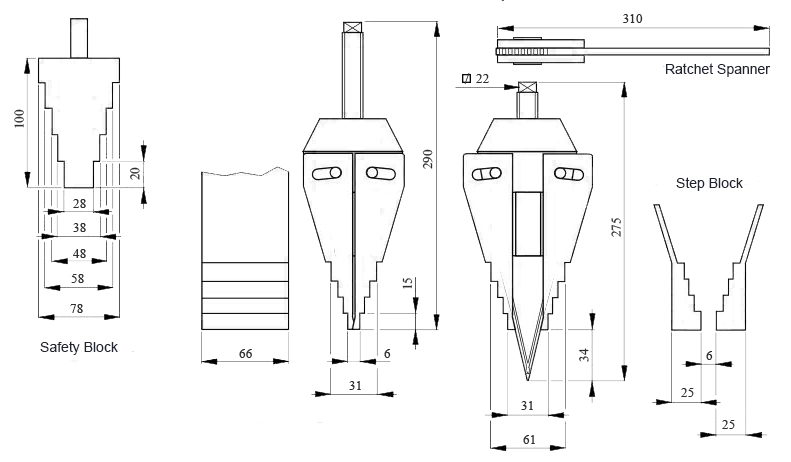

Dimensions (mm):
