Series 1500A

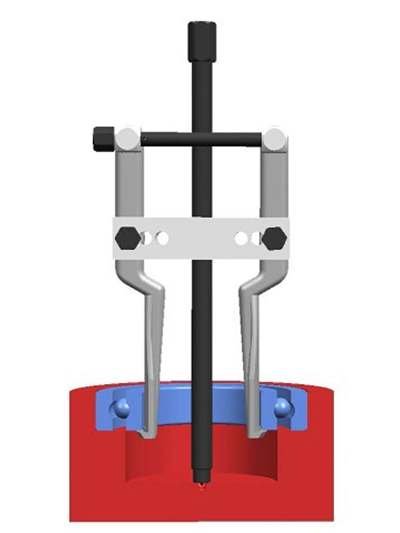

- 2 forged jaws puller.
- With regulation spindle to place the jaws.
- Series to assemble in the 1100 push pullers.

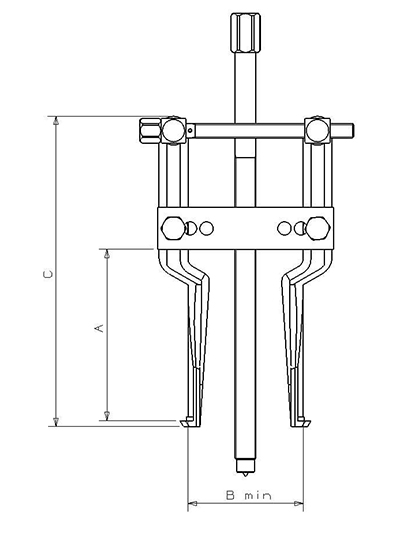

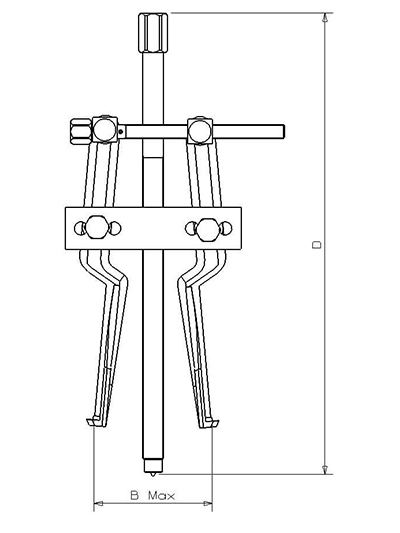

| Ref. | A1 | A2 | B min. | B max. | C | Weight |
|---|---|---|---|---|---|---|
| 1506A | 115 | 237 | 40 | 145 | 133 | 2,4 |
| 1507A | 140 | 266 | 32 | 160 | 133 | 2,6 |
| 1509A | 150 | 310 | 60 | 260 | 202 | 6,0 |
| Ref. | A1 | A2 | B min. | B max. | C | Weight |
|---|---|---|---|---|---|---|
| 1506A | 115 | 237 | 40 | 145 | 133 | 2,4 |
| 1507A | 140 | 266 | 32 | 160 | 133 | 2,6 |
| 1509A | 150 | 310 | 60 | 260 | 202 | 6,0 |
