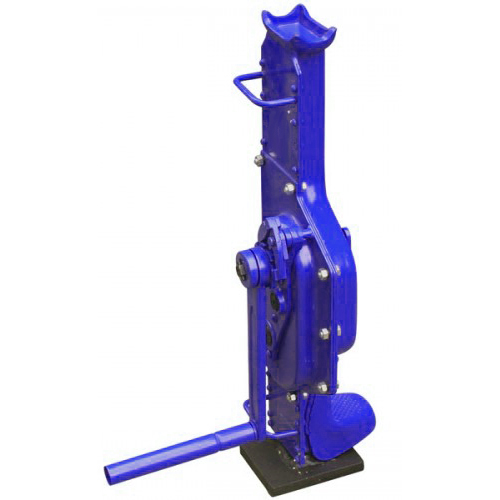

Mechanical Rack Jacks
The mechanical steel jack is designed by mechanical transmission principle. It is one of the best lift tools used in repairing shops and factories.Mechanical steel jack doesn't have hydraulic oil or seal ring so it can be easily maintained. Because of the gear rate design, there is no rick of unexpected falling.
- Wide and strong base design and high-quality weld between the rack that can easily support heavy duty task.
- Equipped with one-time molding claw with texture ensures stability.
- Solid gear rack and gear component are produced with high strength and precision along with high gear rate design brings you easy smooth operating experience.
- One-time molding solid shell with riveting and welding process, makes the product sturdy and durable.
- Equipped withfolding handle.
- The lifting range is much higher compare to hydraulic jack, the lifting or lowering speed is controllable.
| Model | 3550321 | 3450535 | 3901070 | 3201611 | 3402014 |
| Lift Capacity, ton. | 3 | 5 | 10 | 16 | 20 |
| Toe Capacity, ton. | 2.1 | 3.1 | 7.0 | 11.2 | 14 |
| Lifting height, mm | 355 | 345 | 390 | 320 | 340 |
| Paw pick height (h), mm | 60 | 80 | 85 | 160 | 100 |
| Height of jack body (H), mm | 720 | 740 | 800 | 900 | 860 |
| Base width (B), mm | 130 | 140 | 190 | 195 | 240 |
| Base length (L), mm | 138 | 170 | 250 | 255 | 260 |
| Weight, kg | 20 | 28 | 46 | 65 | 95 |
