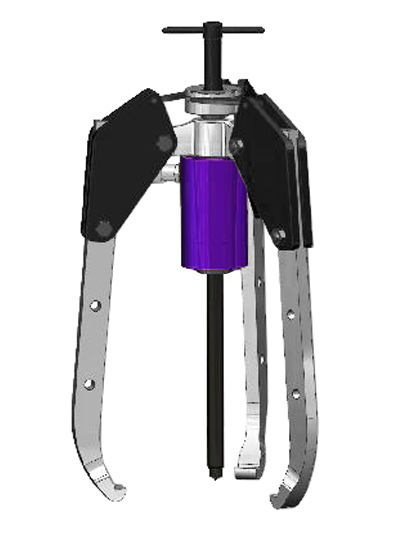

Series 1300THA
- Oscillating jaws
- Forged and tempered
- Two different types of jaws depending on the length: Long jaws (leg with 3 holes) or Extra Long jaws (leg with 4 holes).
- Jaws are linked together through a self centering device allowing all legs to be actuated simultaneously.

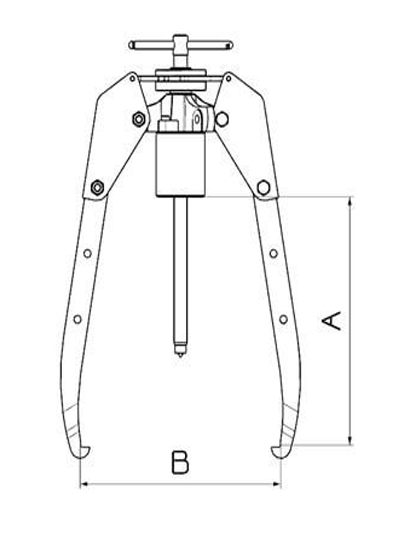

| Ref. | A | B | Hydraulic Part | Ton. | Weigth |
|---|---|---|---|---|---|
| 1310THA | 320 | 350 | 00910 | 10 | 25,0 |
| 1310THXA | 400 | 405 | 00910 | 10 | 27,0 |
| 1318THA | 320 | 480 | 00918 | 20 | 49,0 |
| 1318THXA | 435 | 540 | 00918 | 20 | 52,0 |
| 1330THA | 410 | 650 | 00930 | 30 | 75,0 |
| 1330THXA | 535 | 710 | 00930 | 30 | 81,0 |
| 1352THA | 710 | 980 | 00952 | 50 | 165,0 |
| 1352THXA | 860 | 1080 | 00952 | 50 | 174,0 |
| 1395THA | 710 | 980 | 00995 | 100 | 398,0 |
The hydraulic part of the puller is made up of the hydraulic cylinder which is the force creating of the pressure. It is a single acting cylinder with spring loaded return. The pump is the part that brings pressure to the cylinder. We supplies it together with the gauge and hose (1,8 m long).
 |
The 1310THA and 1310THXA pullers are equipped with a traverses for 2 or 3 jaws |
Warning!!! Pumps can deliver up to 700 bars, for additional safety DO NOT operate with pressure beyond the red zone.
