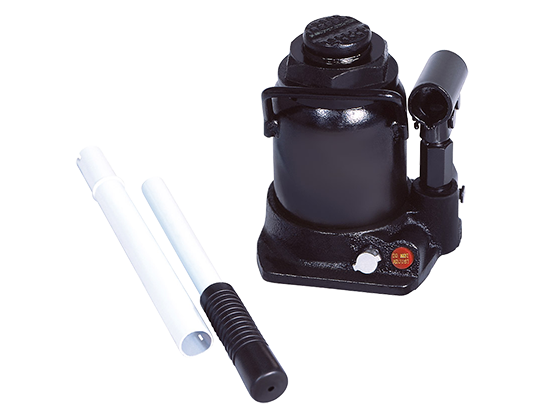

Bottle Jacks

The range of steel bottle jacks offers capacities from 2 to 100 tonnes. The models are equipped with a heat-treated piston rod extension with a seat, which provides low grip height adjustment and maximum lifting height. All models are supplied with a tubular operating lever and have a wide base for increased strength and stability during lifting.

  • Low handle effort for easy operation
  • Internal safety overload valve
  • Suitable for industrial and automotive use
  • Screw extension spans the gap between piston ram cap and load

Bottle Jacks

Bottle Jacks

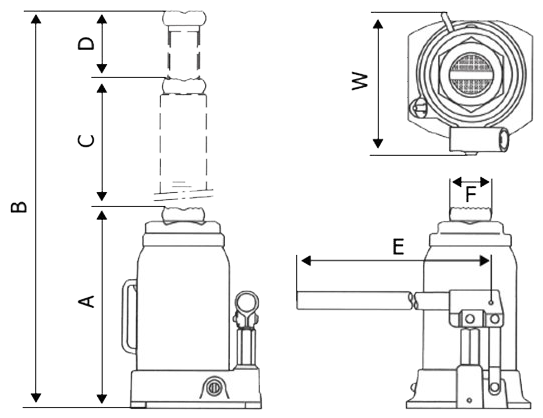

Model Capacity, ton. A, mm B, mm C, mm D, mm E, mm F, mm Base, mm W, mm Weight
11025 2 183 348 115 50 340 25 95 95 2.6 kg
11045 4 204 391 127 60 448 27 107 99 4.2 kg
11068 6 219 427 133 75 448 31 115 102 4.6 kg
11085 8 228 450 152 70 460 34 121 120 5.8 kg
11125 12 240 473 153 80 460 43 134 130 7.9 kg
11129 12 153 271 79 40 460 43 134 130 6.3 kg
11205 20 242 475 153 80 460 52 159 150 12.5 kg
11209 20 165 285 80 40 460 52 159 150 9.4 kg
10300 30 280 460 180 - 970 62 207 174 24.3 kg
10500 50 305 483 178 - 593 79 275 198 50.4 kg
10990 100 305 461 156 - 600 113 305 238 90.6 kg
