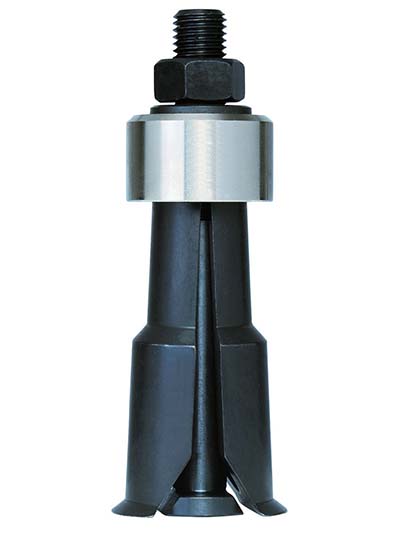

Series 2500
- Internal puller.
- Collet type of two parts.
- Made in CrV.

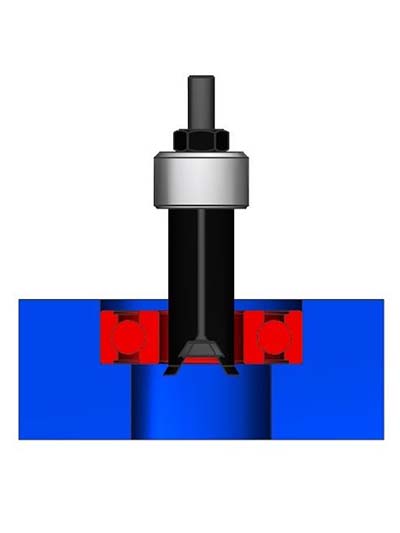

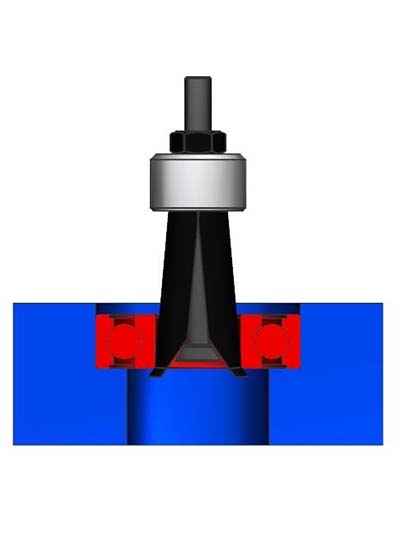

- With 2 system of extraction: slide hammer and push puller with jaws.

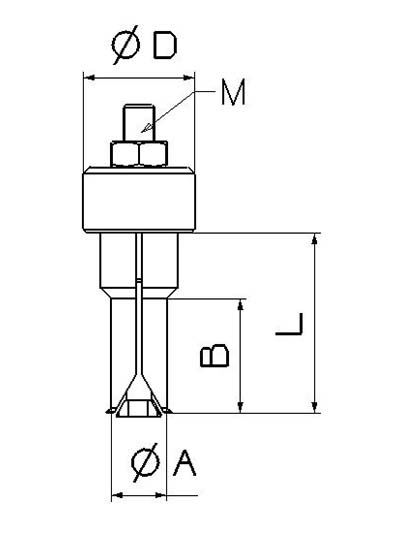

| Ref. | ØA | B | ØD | L | M | Weight |
|---|---|---|---|---|---|---|
| 2500 | 5-7 | 11 | 15 | 27 | M10x1.5 | 0,1 |
| 2510 | 8-11 | 21 | 15 | 40 | M10x1.5 | 0,1 |
| 2511 | 12-25 | 28 | 26 | 50 | M10x1.5 | 0,1 |
| 2512 | 16-19 | 35 | 26 | 50 | M10x1.5 | 0,2 |
| 2513 | 20-26 | 35 | 34 | 55 | M10x1.5 | 0,3 |
| 2514 | 28-34 | 60 | 34 | 60 | M10x1.5 | 0,4 |
| 2515 | 35-44 | 75 | 43 | 75 | M16x2.0 | 0,7 |
| 2515A | 35-44 | 60 | 35 | 60 | M10x1.5 | 0,7 |
| 2516 | 45-58 | 90 | 43 | 90 | M16x2.0 | 0,9 |
| 2517 | 57-75 | 110 | 62 | 110 | M16x2.0 | 2,2 |
| 2518 | 74-100 | 130 | 62 | 130 | M16x2.0 | 3,4 |
