Heavy Equipment Jack

Ideal for lifting rail cars. Lowers load smoothly and safely.

  • Patented load lowering valve. Lowers load smoothly and safely. Eliminates dangerous chatter and bounce
  • Full range of rod extensions. Jack comes fully equipped with extensions to match lifting pad heights on most rolling stock. Maximum lifting height to 1 778 mm
  • Low collapsed height, long stroke. 610 mm collapsed height for low clearance lift pads. 356 mm stroke for maximum lift
  • Adjustable, ergonomic handle. Handle tilts to start the job and is easily locked/unlocked without moving from operating position
  • Cribbing block set with handles and convenient storage rack. Provides solid mechanical load holding
  • High-profile, low rolling resistance, foamfilled tires. Jack can be moved and positioned with minimal effort. No chance of downtime due to punctured tires
  • Electric and air motor options. Quiet, powerful air and electric motor powered units available

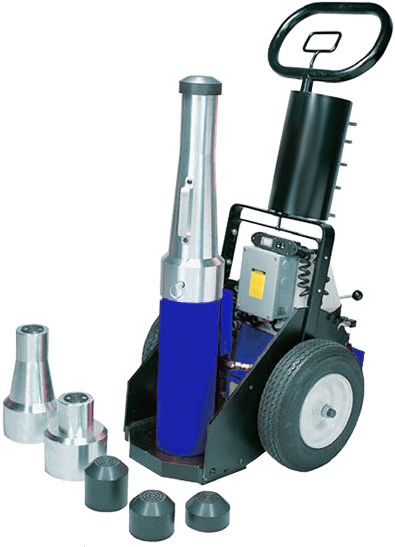

Portable Railroad Jacks

Model Type of Pump Capacity (Tons) Stroke (mm) Retracted Height (mm) Extended Ht. w/Extensions (mm) Product Wt. (kg)
PLE6014 electric 60 356 610 1778 237
PLA6014 air 60 356 610 1778 237
PLE10014 electric 60 356 610 1499 237
PLA10014 air 60 356 610 1499 237
Order No. Motor Power Req. Motor Control Valve dBa by 700 bar
Electric 0.84 kW, 220V 50/60 Hz 12 amp remote control 6.1 m manual 80/95
Air rotary air powered 1.4 m³ / 6 bar air remote control 6.1 m manual 82

Heavy Equipment Jacks Accessories

Extensions (PL60EXT, included)

Order No. Length (mm) Weight (kg)
351931 25.4 2.2
351927 50.8 4.0
351928 76.2 6.4
351929 101.6 8.7
66053 127 9.5
66054 254 13.8
66055 508 22.1

LIFTING RANGE
Lifting range (in 25.4 mm increments): 610 - 1778 mm.
Only 3 extensions are needed to provide this range.
Do NOT exceed 1778 mm lifting range on 60-ton unit or 1499 mm on 100-ton unit.

Cribbing Blocks (CBS60, included)

Order No. Height (mm) Qty
351954 38.1 1
351953 76.2 3
