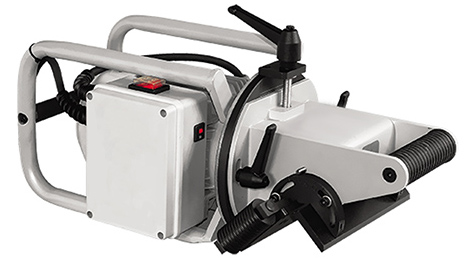

FS Series Electric Chamfering Machine
The Portable Bevelling Machine has a maximum bevel width of 26 mm, at an angle of 45˚, which is unique in the market. Furthermore, this benefits from an exceptional powerful 1100 W motor making this machine very suitable for not only cutting stainless steel but a wide variety of materials. This machine is suitable to cut both plate and pipe material.
- Ideal for chamfering before welding
- Use easy-to-replace cutting blades
- Each cutting blade has four working edges for good economy
- Finish a surface so fine that post-sanding is unnecessary
- Column R-section can be chamfered with optional attachment
- No damage of workpieces is expected as heat-hardening or oxidization will seldom happen
| Model | FS-10 | FS-22 | FS-26 |
| Power Source | single phase | single phase | single phase |
| Voltage | 220-240V 50/60Hz | 220-240V 50/60Hz | 220-240V 50/60Hz |
| Motor power | 550 W | 1100 W | 1100 W |
| Spindle speed | 1675 - 2850 rpm | 1675 - 2850 rpm | 1675 - 2850 rpm |
| Bevel angle | 0 - 60 ̊ | 0 - 60 ̊ | 0 - 60 ̊ |
| Max. bevel width | 10 mm (45 ̊ angle) | 22 mm (45 ̊ angle) | 26 mm (45 ̊ angle) |
| Dimension | 400×250×250 mm | 510×290×210 mm | 510×290×210 mm |
| Weight | 15 kg | 20 kg | 24 kg |
Standard Complete Set
Instruction manual, allen keys, torx key, spanners, safety ear, safety goggles, safety gloves
Optional Parts
- Replacement milling cutter Z=10 (15.2×2), complete;
- Milling cutter Z=10 (15.2×2) made of heat-resistant steel, complete;
- Shaped milling cutter Z=10 (15.2×2), complete;
- Milling cutter radius Z=6 R2-R5 (under the order of the desired radius), assembled;
- Speed control (speed control);
- Tooling for processing the ends of pins and rods;
- Equipment for chamfering pipes with a diameter of 350 mm and a guide belt;
- Stainless steel snap-in for guide belt;
- Guide belts for pipes with a diameter from 420 to 1220 mm
