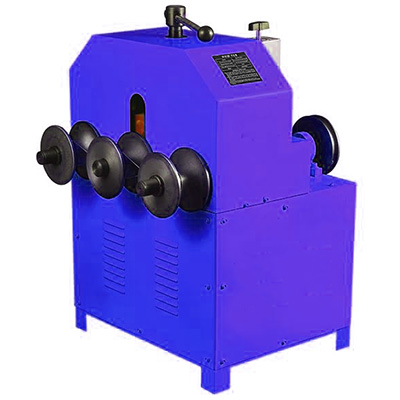

HHW-76B Multifunctional Pipe Bender for Round and Square Pipes Bending
1. Bend large diameter into full circle or arc easily
- These two model are very suitable for steel pipe of greenhouse bending.
- It can bend SS thick pipe, thick square pipe and soft steel pipe.
- Adjust shafts by hand for two main shafts and one driven shaft.
2. If you want to bend pipes into a circular or arc shape ,the diameter of the circle or arc should be more than twenty times of the pipe diameter
- We can supply bending dies in other specifications according to your requirements.
3. Dies are cast with special steel, very long usage life
- We will put machine and dies into one plywood case.
- Square dies and round dies are available.
| Model | HHW-76B |
| Pipe wall thickness | 0.5-2.0 mm |
| Input Power, W | 1500 |
| Voltage | 220/380V 50Hz |
| Accessories | 17 pcs bending formers |
| Packing size | 730×630×1030 mm |
| Weight | 260 kg |
More Information of Pipe Bending Dies
| Dies for Round Tubes (mm) | Dies for Square Tubes (mm) | ||||||||||||||||
| 16 | 19 | 22 | 25 | 32 | 38 | 51 | 63 | 76 | 16 | 19 | 22 | 25 | 30 | 38 | 40 | 50 | |
| Wall thickness of Stainless Steel Tube | 0.5 | 0.8 | 1.0 | 1.0 | 1.2 | 1.2 | 1.5 | 1.6 | 2.0 | 0.5 | 0.8 | 1.0 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 |
| Wall thickness of Mild Steel Tube | 0.8 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 | 1.8 | 1.8 | 2.3 | 0.8 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 | 1.8 | 1.8 |
