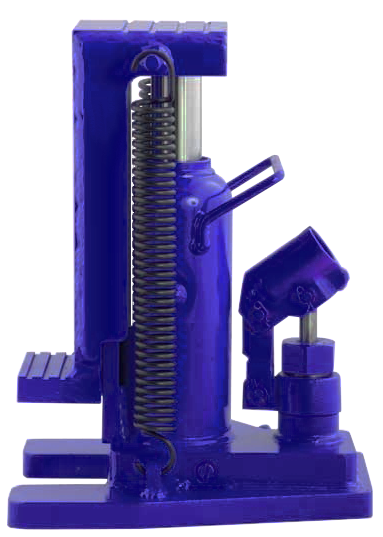

Toe Jacks
Heavy-duty industrial dual purpose jacks. They are designed for lifting loads with low or high clearances. This makes the jack ideal for house moving, machinery installation and applications at shipyards, bridge building, or plant construction sites. Toe Jacks comply with ANSI/ASME B30.1 standards.
- Heat treated and chrome plated medium-carbon steel cylinder
- Chrome plated ram promotes longer seal life and optimum performance
- Patented by-pass device protects hydraulic system from over traveling damage
- Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use
- Dual purpose jack designed for low or high clearances increases versatility
- Pump handle included
| Model | Lift Capacity, ton. | Toe Capacity, ton. | Stroke, mm | Base Size, mm | Weight, kg |
| 1200503 | 5 | 3 | 120 | 240×175×245 | 15 |
| 1301005 | 10 | 5 | 130 | 245×176×265 | 22 |
| 1302010 | 20 | 10 | 130 | 270×200×285 | 33 |
| 1403015 | 30 | 15 | 140 | 380×270×340 | 44 |
