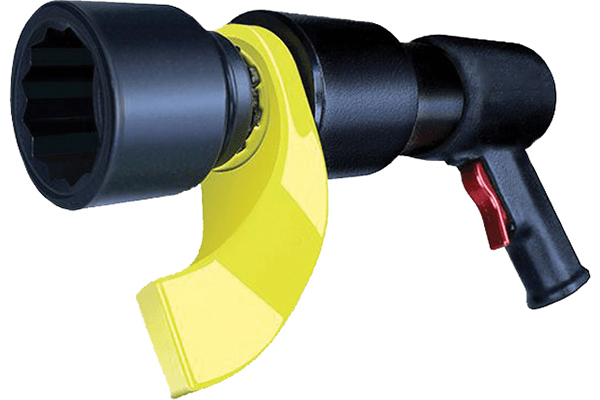

RP Series Pneumatic Torque Wrench
The RP series handle makes it appear like an impact wrench, but once you pull the trigger nothing about this tool relates to the word “IMPACT”. This is a smooth running instrument for applying vast amounts of torque in a continuous fluid like manner. With the use of standard industrial sockets every application is met with repeatable torque to an accuracy of +/-3%.
| Model | RP-150 | RP-300 | RP-500 | RP-1000 | RP-2000 |
| Square Drive (B, in) | ¾" | 1" | 1" | 1" | 1½" |
| Min. Torque (Nm) | 150 | 300 | 500 | 1000 | 2000 |
| Max. Torque (Nm) | 1000 | 2000 | 3000 | 6000 | 8000 |
| Output Accuracy @ Set Torque | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% |
| Repeatability | ±1° | ±1° | ±1° | ±1° | ±1° |
| Duty Cycle | 100% | 100% | 100% | 100% | 100% |

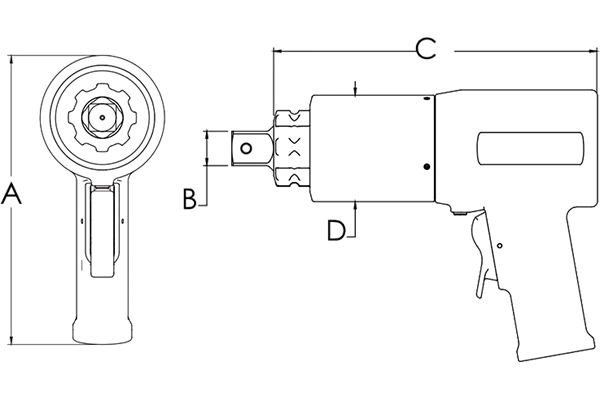

| Height (A), mm | 185 | 185 | 185 | 185 | 185 |
| Length (C), mm | 250 | 260 | 340 | 380 | 380 |
| Diameter (D), mm | 74 | 76 | 93 | 105 | 114 |
| Weight, kg | 4.8 | 5.5 | 7.5 | 14.0 | 18.0 |
| Requirements | Air pressure 10-90 psi / Flow 45-55 CFM | ||||
