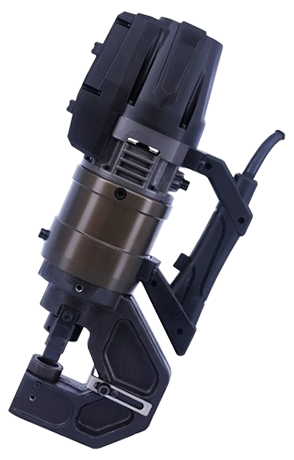

Electric Puncher Machine NMHP Series

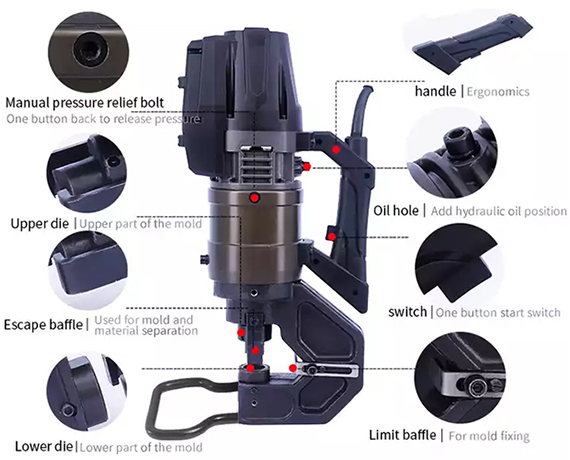

Designed for punching holes in corners, channels and current-carrying wires with maximum accuracy, and also allows you to significantly reduce the time to get a hole compared to drilling. The hydraulic cylinder used in the construction ensures the rapid execution of the cycle from punching the hole to extracting the punch from the material.
| Model | NMHP-20 | NMHP-22 | NMHP-25 | NMHP-30 | NMHP-32 |
| Voltage | 220V | 220V | 220V | 220V | 220V |
| No-load power | 950W | 1000W | 1500W | 2000W | 2000W |
| Punching speed | 2-3S | 3-4S | 5-6S | 5-6S | 6-7S |
| Maximum diameter | 20.5 mm | 22.5 mm | 25.5 mm | 30.5 mm | 32 mm |
| Maximum thickness | 6.5 mm | 8.0 mm | 11.0 mm | 12 mm | 12 mm |
| Dimensions | 410x115x220 mm | ||||
| Weight | 13 kg | 14 kg | 17.5 kg | 18 kg | 18.5 kg |
| Logistics Size | 545x220x185 mm | 580x340x235 mm | |||
| Logistics Weight | 18.3 kg | 20 kg | 27 kg | 27.5 kg | 28.2 kg |
Accessories
Standard mold for NMHP-20: 6.5/9/13/17/20.5 mm
Standard mold for NMHP-22: 9/11/13/17/22.5 mm
Standard mold for NMHP-25: 11/13/17/21.5/25.5 mm
Standard mold for NMHP-30 17/20.5/25.5/28/30.5 mm
Standard mold for NMHP-32: 17/21.5/25.5/28/32 mm
