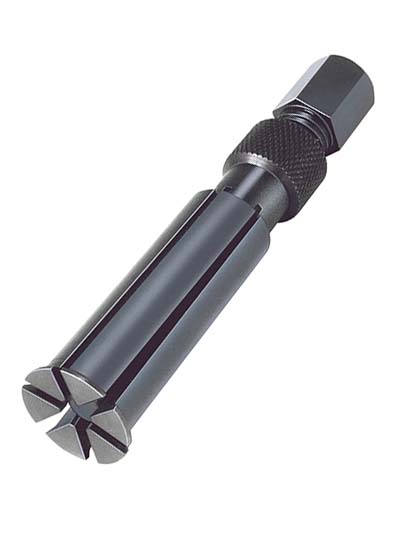

Series 4000
- Internal puller.
- Elastic Collet type from 2 to 6 cuts depending of the diameter.
- Made in CrV.
- With 2 system of extraction: slide hammer and push puller with jaws.
| Ref. | Ø | ØA | ØB | ØC | L | M | Weight |
|---|---|---|---|---|---|---|---|
| 4000 | 6-8 | 8,5 | 7,5 | 11 | 11 | 50 | 0,05 |
| 4010 | 8-10 | 10,4 | 8,8 | 14 | 15 | 46 | 0,05 |
| 4010A | 9-11 | 12,5 | 11,5 | 14 | 40 | 32 | 0,05 |
| 4011 | 10-13 | 13,5 | 12,0 | 14 | 40 | 32 | 0,05 |
| 4012 | 13-17 | 17,5 | 15,8 | 14 | 48 | 32 | 0,07 |
| 4013 | 18-23 | 25,0 | 21,0 | 18 | 56 | 24 | 0,15 |
| 4014 | 23-29 | 32,0 | 29,5 | 24 | 71 | 33 | 0,31 |
| 4015 | 30-37 | 39,5 | 35,5 | 33 | 80 | 41 | 0,6 |
| 4016 | 38-52 | 56,0 | 51,5 | 41 | 84 | 57 | 1,3 |
| 4017 | 49-62 | 66,0 | 61,0 | 41 | 86 | 57 | 1,5 |
