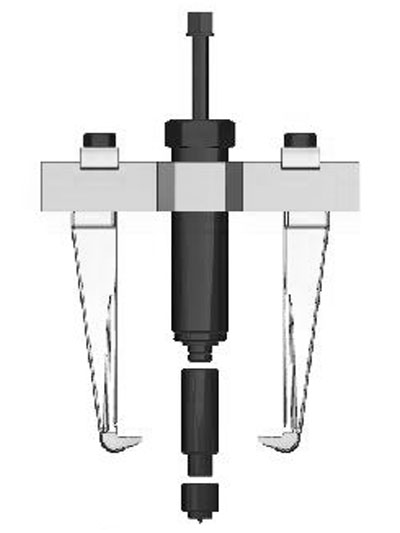

Series 1018H
- 2 Forged jaws
- For external and internal applications
- It can stand 12 ton

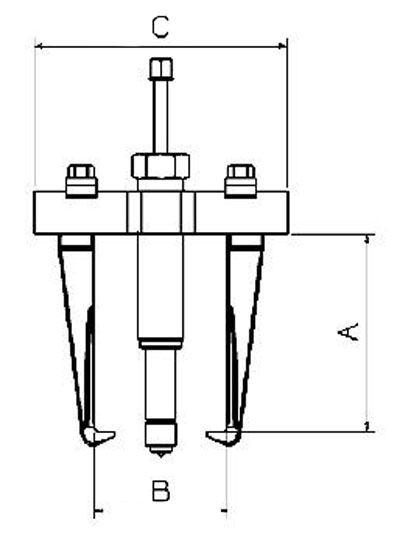

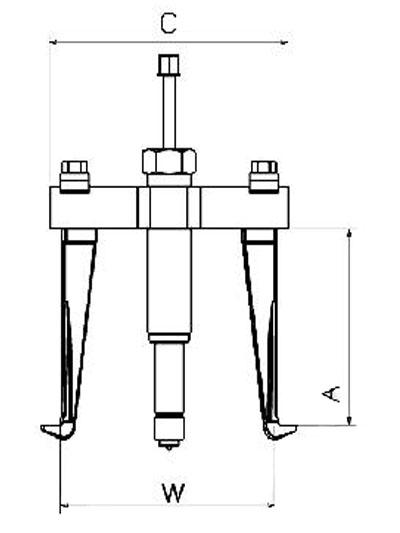

| Ref. | A | B min. | B max. | C | W min. | W max. | Weigth |
|---|---|---|---|---|---|---|---|
| 1012H | 160 | 60 | 150 | 210 | 172 | 215 | 4,9 |
| 1012LH | 220 | 60 | 150 | 210 | 172 | 215 | 5,6 |
| 1012AH | 160 | 60 | 200 | 260 | 172 | 270 | 5,2 |
| 1012LAH | 220 | 60 | 200 | 260 | 172 | 270 | 5,9 |
