Heavy-duty wheels for trolleys are distinguished by their strength, ability to withstand huge loads. They are well suited for picking industrial systems, trolleys, work platforms.

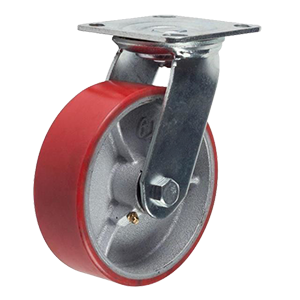

Heavy-duty polyurethane swivel wheel
• Galvanized bracket — rust protection.
• Shock-resistant fork of the wheel support.
• Bearings in two rows in the rotary platform.
• There is a roller bearing in the wheel axis.
• Operating temperature -35C +50C.
They have proven themselves well on uneven surfaces and in a humid environment.
| Model |  |
 |
 |
 |
 |
 |
| SWR 93 | 75 mm | 50 mm | 118 mm | 114х100 mm | 73х85 mm | 200 kg |
| SWR 42 | 100 mm | 50 mm | 140 mm | 100х115 mm | 73х85 mm | 230 kg |
| SWR 55 | 125 mm | 50 mm | 159 mm | 100х115 mm | 73х85 mm | 280 kg |
| SWR 63 | 150 mm | 50 mm | 190 mm | 100х115 mm | 73х85 mm | 360 kg |
| SWR 80 | 200 mm | 50 mm | 235 mm | 100х115 mm | 73х85 mm | 460 kg |
| SWR 85 | 250 mm | 50 mm | 290 mm | 100х115 mm | 73х85 mm | 460 kg |

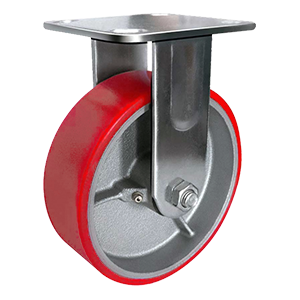

Heavy-duty polyurethane non-rotating wheel
• Galvanized bracket — rust protection.
• Shock-resistant fork of the wheel support.
• There is a roller bearing in the wheel axis.
• Operating temperature -35C +50C.
It is used on heavy equipment that moves only in one plane or requires greater stability when moving.
| Model | |
|
|
|
|
|
| SWN 93 | 75 mm | 50 mm | 118 mm | 114х100 mm | 73х85 mm | 200 kg |
| SWN 42 | 100 mm | 50 mm | 140 mm | 100х115 mm | 73х85 mm | 230 kg |
| SWN 55 | 125 mm | 50 mm | 159 mm | 100х115 mm | 73х85 mm | 280 kg |
| SWN 63 | 150 mm | 50 mm | 190 mm | 100х115 mm | 73х85 mm | 360 kg |
| SWN 80 | 200 mm | 50 mm | 235 mm | 100х115 mm | 73х85 mm | 460 kg |
| SWN 85 | 250 mm | 50 mm | 290 mm | 100х115 mm | 73х85 mm | 460 kg |
