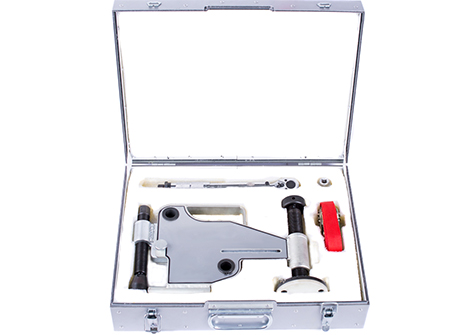

Mechanical Flange Alignment Tools FA4TMSTD
The tool addresses the rotational or lateral misalignment that can occur within flange joints. Compared with traditional, manual approaches, the tool offer a much safer, quicker and effective means of realigning flanges.
| Capacity, ton | Min. Bolt Size, mm | Stroke, mm | Flange size, mm | Dimensions, mm | Weight, kg |
| 4 | 24 | 54 | up 154 | 367×100×292 | 8.5 |
Used Areas:
- commissioning
- construction
- routine maintenance
- valve change-outs
Technical Features
- use on virtually all horizontal and vertical flanges including ANSI, API, BS, DIN & SPO
- operates on most pipe configurations
- suitable for offshore and onshore applications
