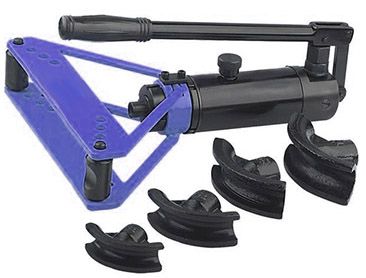

HHW-1A Portable Manual Hydraulic Pipe Bender
- Clean,smooth bending arc for use.Simple operation and fast setup.
- Strong plastic carry case and dies are included as standard accessories.
- Suitable for mild steel and stainless steel pipes of 16-33 mm.
Specifications
| Model | HHW-1A |
| Pipe wall thickness | 1.5-3.5 mm |
| Max. stroke | 150 mm |
| Accessories | 4 pcs bending formers |
| Packing size | 430×380×130 mm |
| Weight | 17 kg |
More Information of Pipe Bending Dies
| Bending Dies Sizes (Inch) | A (mm) |
B (mm) |
Minimum Bend Radius (mm) | D (mm) |
Pipe Schedule | Wall Thickness (mm) | |||
| 3/8" | 104 | 63.5 | 50 | 18 | 40 | 2.3 | |||
| 1/2" | 112 | 68.5 | 54.8 | 21.5 | 40 | 2.8 | |||
| 3/4" | 131 | 87.5 | 68.5 | 28 | 40 | 2.9 | |||
| 1" | 147 | 107 | 86 | 34 | 40 | 3.4 | |||
