An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld preparation, counter boring and heat exchanger repair.

•
•
•

Specifications

• Facing Diameter: 762-2032mm
• Clamping Range: 762-1804mm

Features:

• Quick set adjustable clamping jaws
• Swivel tool post for grooves and bevels
• Three mounting base

Ask a Question

Download Catalog

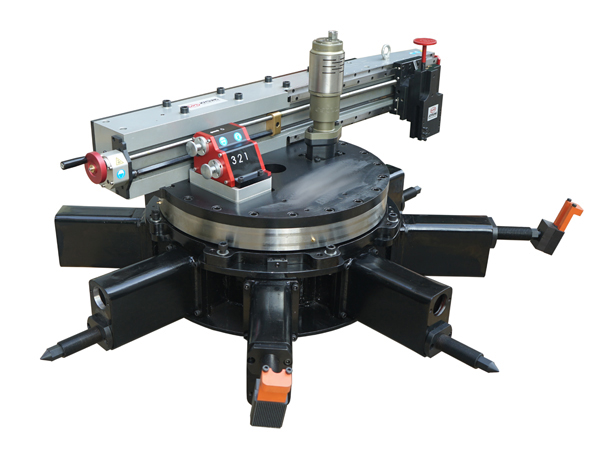

FDG2000 Flange facer is designed with light and high precision consideration of different countries, it Adopts ascendant Processing technology to make sure the best accurateness and high efficiency. It’s widely used for petroleum, Chemical industry, electric plant, ship rebuilding.

Superior Machining

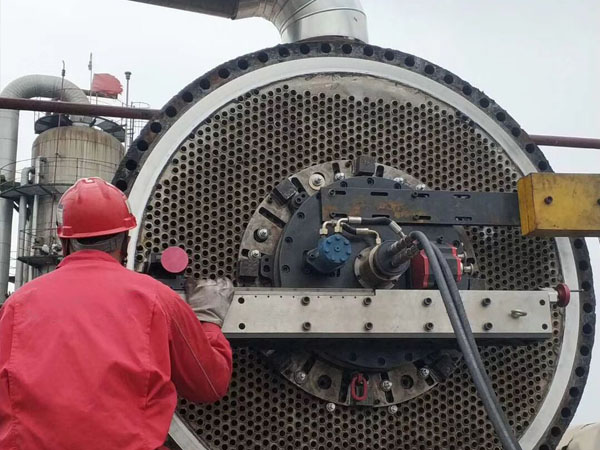

It can achieve working without mounting base unit, typical applications for on-site machining of heat exchanger, blind flange, and so on, This provides users with the flexibility to make more cuts including chamfers, O-ring grooves, RTJ grooves, lens rings, beveling, and other surfaces.

Lightweight & Precise Body

Modular structural design, high-intensity of material with Processing technology, which makes sure the accuracy of processing.

Quick set up

Flange facing machine adopt independent design of quick model parts, therefore, it’s fast to mount it and machining. A experienced operator will finish the mounting processing within an hour according the rightful operating process.

Drive Power Unit

The machine is driven by a 4HP pneumatic motor, It can achieve cuts up to a maximum depth of 2 mm (0.079″) on flanges without bolt holes or 0.5 mm (0.02″) with holes.

Feed Rates

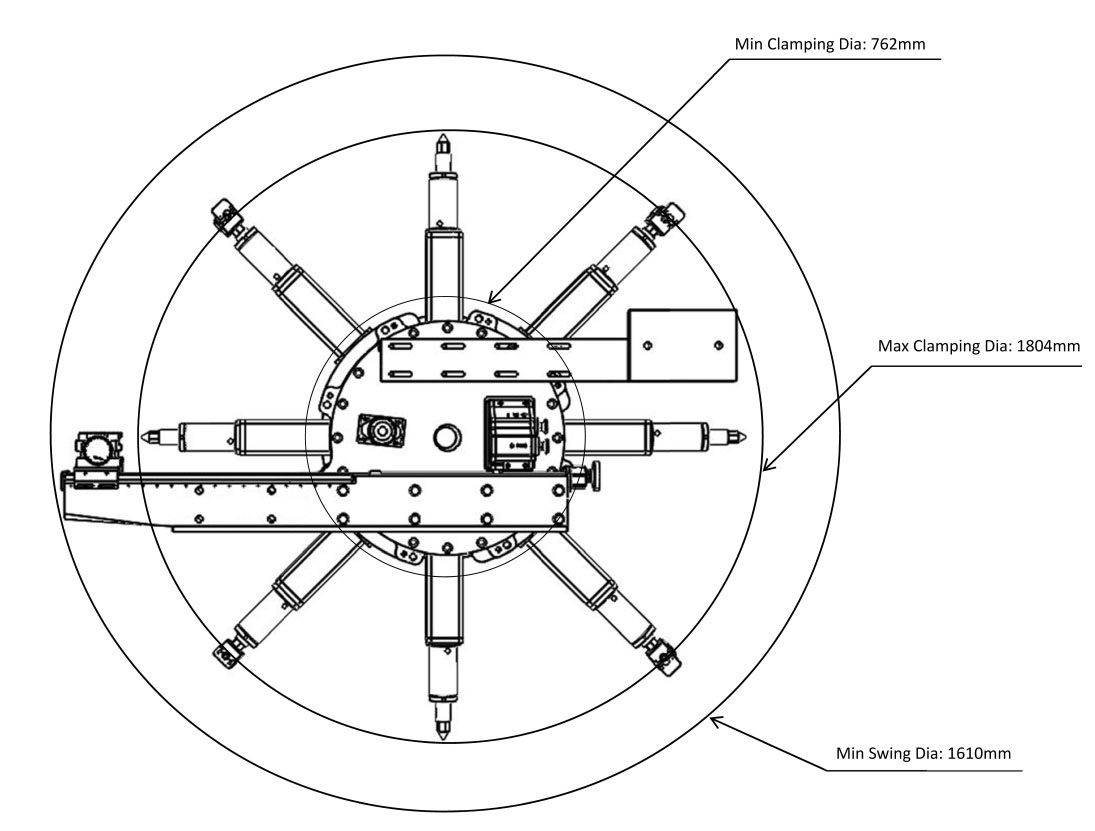

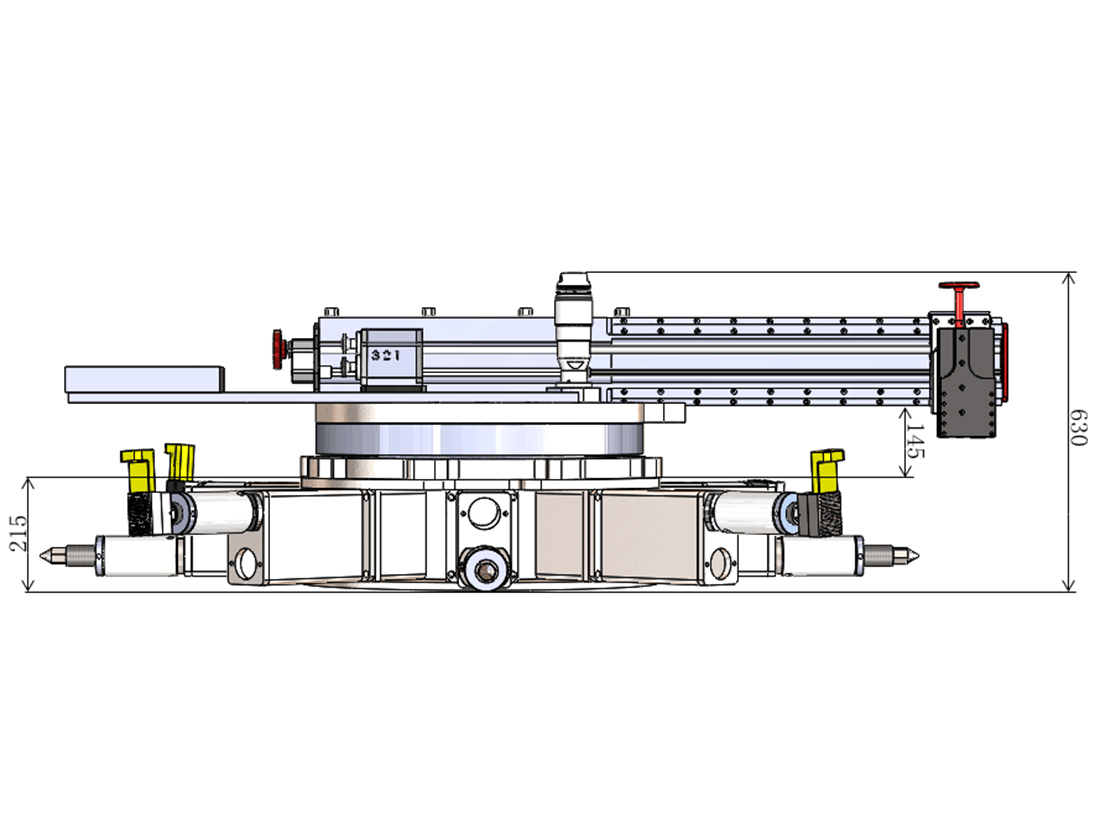

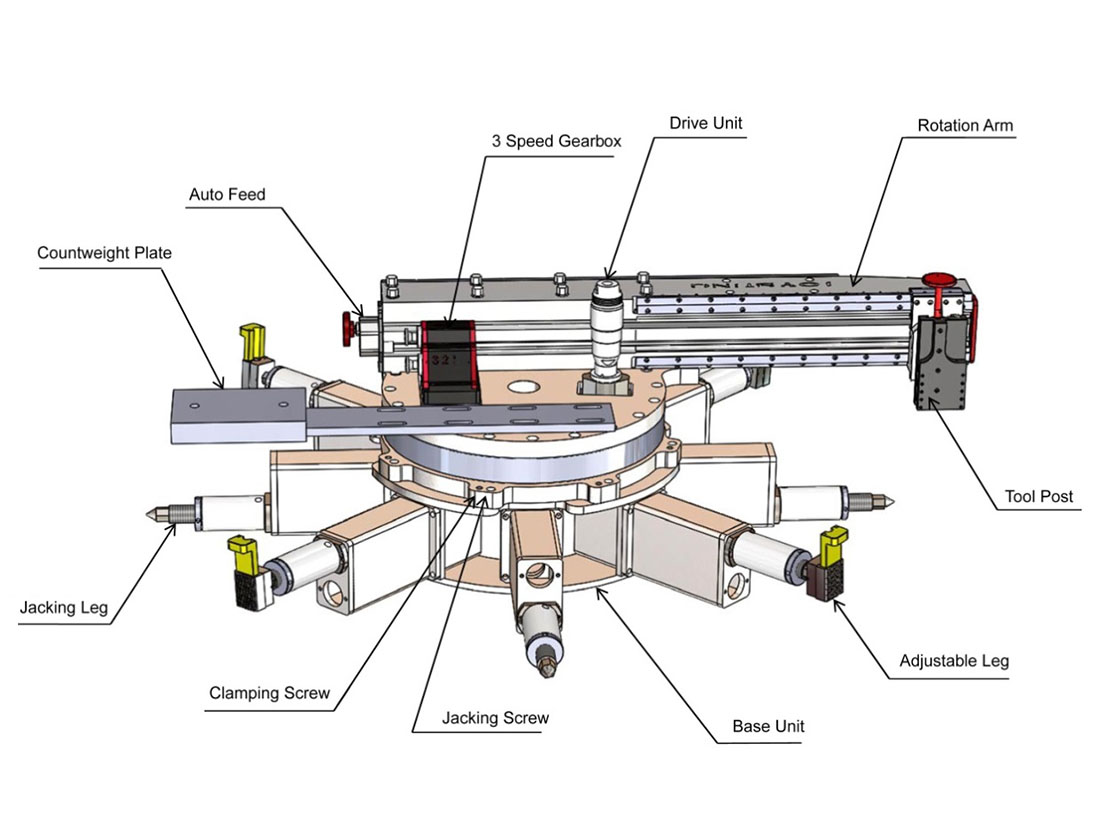

Operational Dimensions & Picture
