R59 Series Tube and Pipe Bevelings Machine

Pipe Bevelings Machine it is used for preparing the ends of pipelines for subsequent welding and allows you to cut the end of the pipe after gas cutting or cutting with a grinding wheel, chamfering, as well as boring the inner diameter of pipes at the installation site. Designed for processing pipes with a diameter of 16 to 720 mm and a wall thickness of up to 70 mm.

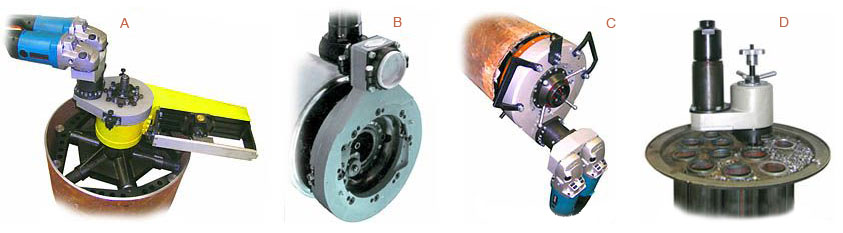

A - model R59112 for pipes Ø530-720 mm; B - model R5948M for pipes Ø219-426 mm; C - model R5963 for pipes Ø219-457 mm; D - model R5968 for pipes Ø16-38 mm

Features

• LIGHT WEIGHT BODY - High pressure cast aluminum body allows continuous operation under the harshest conditions.
• ROBUST TOOL HOLDER - Holds the cutting tool bits tightly at the desired position. Its robust construction and support to the cutting bits ensure vibration free performance.
• HIGH STRENGTH FEED SHAFT - Precise machined and hardened feed shaft provides a strong support to the assembly which slides over it.
• TOOL STEEL JAW - Wedge style hardened tool steel jaws for maximum life and secure positioning. Available within the locking range of 16 to 720 mm.
• CENTRAL MANDREL - Expanding mandrel allows fast, accurate and self-centering alignment with torque-free operation for operator safety.
• GEAR BOX - Highly accurately machined for positive power transmission with less noise and no wear and tear.
• BROACHED BUSH - Through hardened broached bush restricts the angular movement of the machine.
• PNEUMATIC OR ELECTRIC DRIVE - High quality pneumatic or electric drive for reliable service and long working life.

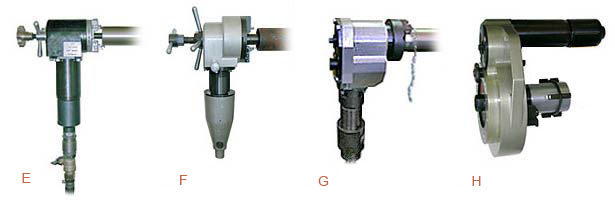

E - model R5914 for pipes Ø16-38 mm; F - model R5921 for pipes Ø38-102 mm; G - model R5902 for pipes Ø40-80 mm; H - model R5946 for pipes Ø82-190 mm

Technical Specification

Universal

Special

Facing
