Normal jaws (2 holes), long jaws (3 holes) or extralong jaws (4 holes)
L: Long jaws

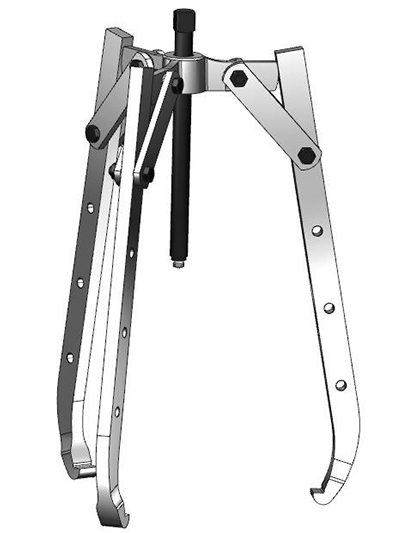

X: Extralong jaws

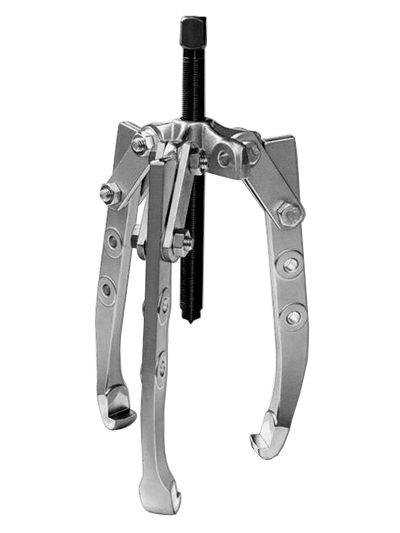

Series 1300T

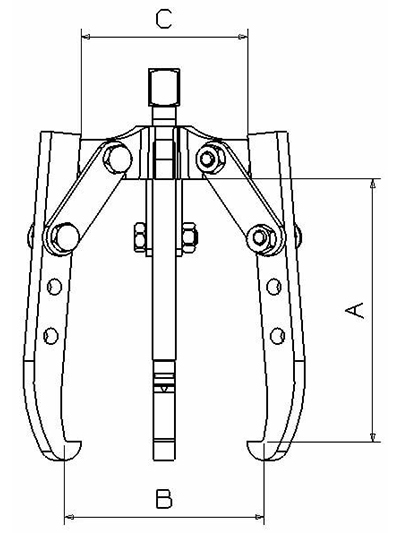

| Ref. | A | B | C | Ton. | Weight | Position |
|---|---|---|---|---|---|---|
| 1300T | 60 | 65 | 37 | 0,5 | 0,3 | 3 jaws |
| 1300LT | 70 | 77 | 47 | 0,5 | 0,3 | 3 jaws |
| 1301T | 85 | 105 | 70 | 1 | 0,7 | 2/3 jaws |
| 1301LT | 105 | 115 | 70 | 1 | 0,7 | 2/3 jaws |
| 1304T | 135 | 150 | 76 | 4 | 1,8 | 2/3 jaws |
| 1304LT | 185 | 175 | 76 | 4 | 2,1 | 2/3 jaws |
| 1307T | 180 | 200 | 108 | 7 | 3,3 | 2/3 jaws |
| 1307LT | 225 | 240 | 108 | 7 | 3,5 | 2/3 jaws |
| 1308T | 180 | 250 | 160 | 8 | 3,7 | 2/3 jaws |
| 1308LT | 225 | 290 | 160 | 8 | 3,9 | 2/3 jaws |
| 1308XT | 265 | 320 | 160 | 8 | 4,6 | 2/3 jaws |
| 1310T | 300 | 310 | 161 | 10 | 7,5 | 2/3 jaws |
| 1310LT | 385 | 360 | 161 | 10 | 8,5 | 2/3 jaws |
| 1310XT | 460 | 410 | 161 | 10 | 10,9 | 2/3 jaws |
| 1317T | 370 | 425 | 280 | 17 | 16,5 | 3 jaws |
| 1317LT | 480 | 480 | 280 | 17 | 18,5 | 3 jaws |
| 1317XT | 600 | 540 | 280 | 17 | 20,5 | 3 jaws |
| 1330T | 460 | 520 | 325 | 30 | 33,5 | 3 jaws |
| 1330LT | 585 | 580 | 325 | 30 | 39 | 3 jaws |
| 1330XT | 710 | 720 | 325 | 30 | 45,5 | 3 jaws |
| 1350T | 750 | 850 | 402 | 50 | 65 | 3 jaws |
| 1350LT | 900 | 980 | 402 | 50 | 75 | 3 jaws |
| 1350XT | 1050 | 1080 | 402 | 50 | 85,5 | 3 jaws |
