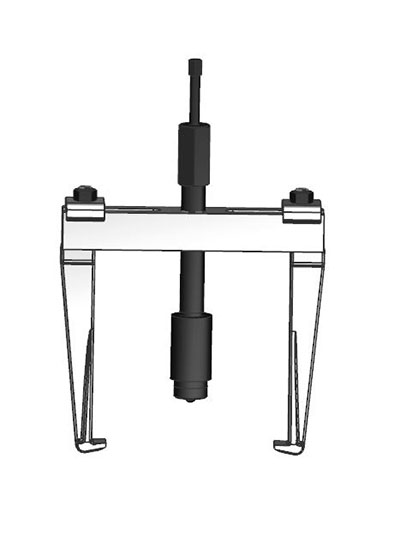

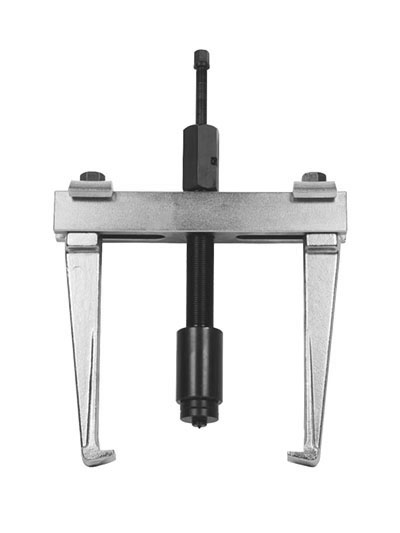

Series 1016H
- 2 Forged jaws

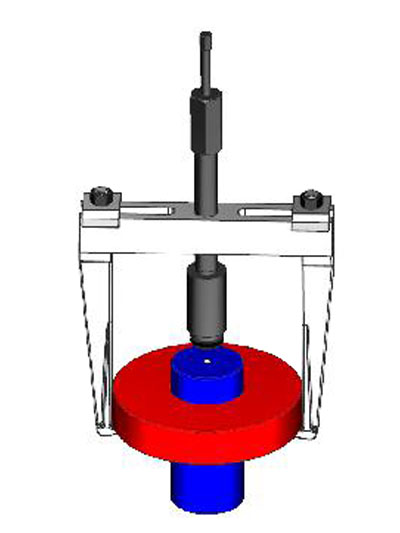

- For external and internal applications
- It can stand 16 ton

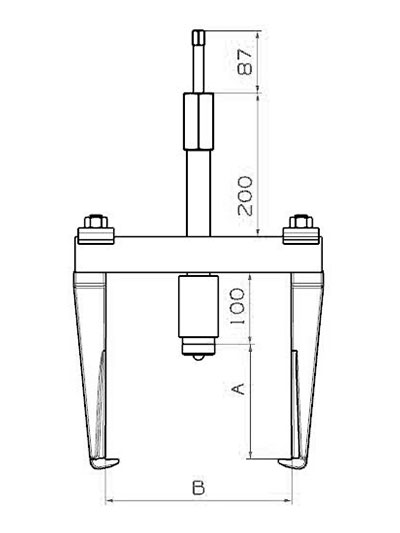

| Ref. | A | B max. | C | W max. | Weigth |
|---|---|---|---|---|---|
| 1016H | 160 | 250 | 345 | 342 | 12,5 |
| 1016LH | 290 | 250 | 345 | 342 | 15,5 |
| 1016AH | 160 | 390 | 480 | 475 | 15,0 |
| 1016LAH | 290 | 390 | 480 | 475 | 17,0 |
| 1016XH | 160 | 600 | 675 | 682 | 22,0 |
| 1016XAH | 290 | 600 | 675 | 682 | 25,0 |
