Hydraulic Flange Spreading Wedges FS-50/100
Hydraulic Flange Spreaders are used for safety opening pipe flanges. Available in capacities of 5 tonnes and 10 tonnes the versatility of both models enables the user to open flanges up to 92 mm thick. Operated with a standard hydraulic hand pump and connecting hose and supplied in a handy steel storage case, Hydraulic Flange Spreaders can be operated individually, or as a pair when opening large diameter flanges. With Hydraulic Flange Spreaders it takes minutes open the toughest flanges without the risks of sparks caused by hammer blows and chisels.
| Model | Capacity, ton | Stroke, mm | Oil Capacity, cm³ | Max. Flange Thickness, mm | Flange Diameter | Stud Size, mm | Standard Wedge, mm | Optional Wedge, mm |
| FS-50 | 5 | 39 | 25 | 2×58 | 1150 mm (45”) | 19 - 29 | 3 - 29 | 30 - 56 |
| FS-100 | 10 | 55 | 78 | 2×93 | 1900 mm (75”) | 32 - 41 | 3 - 29 | 30 - 56 |

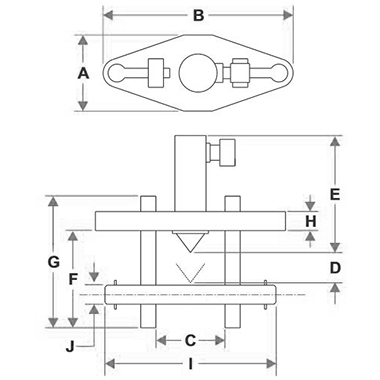

| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm | I, mm | J, mm |
| FS-50 | 77 | 210 | 61 - 157 | 10 | 192 | 69 | 131 | 25 | 205 | 18 |
| FS-100 | 110 | 290 | 61 - 226 | 30 | 165 | 89 | 180 | 38 | 274 | 31 |
