Slim Torque Multipliers

  • Compact Size: Compact in size hence can be used in constrained areas.
  • Ratio: Higher reduction ratio for low input.
  • Safety: Safety shear pin at the input provisioned to prevent overloading.
  • AWUR: In built Anti-Windup Mechanism reduces operators effort. Can be used with non-ratchet type torque wrench.
  • Pin Lock: Pin Lock mechanism at output Sq. Drive for positive locking of socket.
  • Reaction Arm: Different type of reaction arm available as per user requirement.
  • Accuracy: Better than ± 4% with very high repeatability.

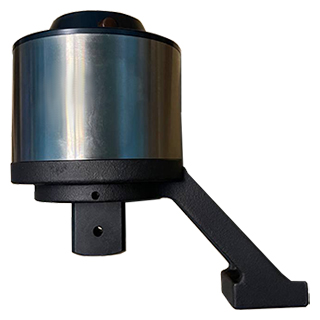

Standard Torque Multipliers
Standard Torque Multipliers

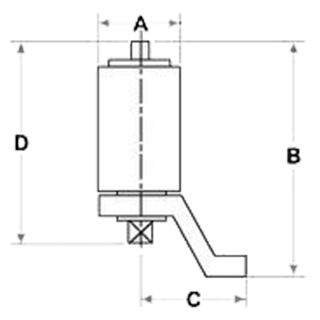

Model Capacity, Nm Ratio Sq. Drive (inch) A, mm B, mm C, mm D, mm Weight, kg
Input Output
MT2-1000/5 1000 5 ½ 1 81 120 120 88 2.1
MT2-2000/15 2000 15 ½ 1 81 135 120 105 3.3
MT2-3500/17 3500 17 ½ 1 98 195 140 163 5.0
MT2-5500/25 5500 25 ½ 1½ 117 210 145 165 8.1
MT2-7500/25 7500 25 ½ 1½ 125 210 145 170 12.0

A wide range of reaction supports makes it easy to customize the tool for most operations performed.
