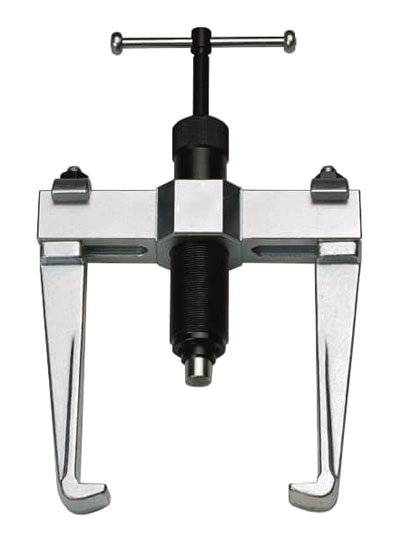

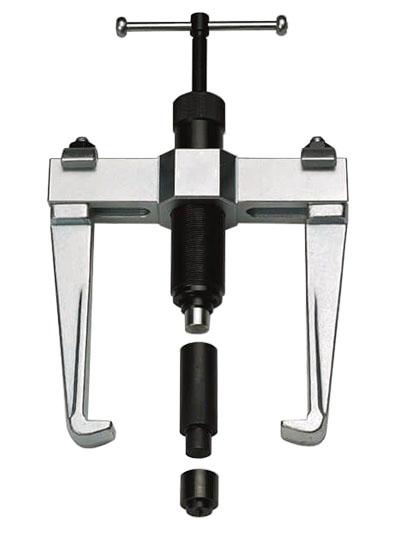

Series 1010H
- 2 Forged jaws

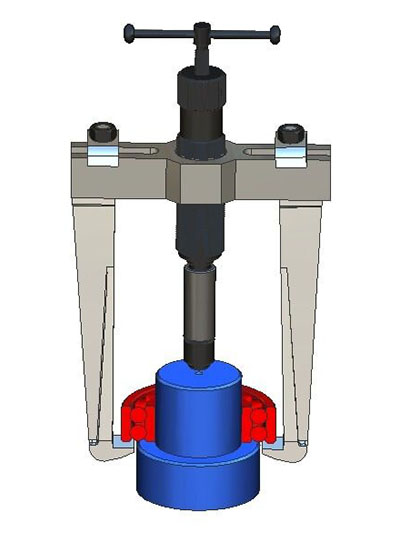

- For external and internal applications
- It can stand 8 ton
| Ref. | A | B min. | B max. | C | W min. | W max. | Weigth |
|---|---|---|---|---|---|---|---|
| 1010H | 160 | 60 | 150 | 210 | 172 | 215 | 4,8 |
| 1010HL | 220 | 60 | 150 | 210 | 172 | 215 | 5,5 |
| 1010AH | 160 | 60 | 200 | 260 | 172 | 270 | 5,1 |
| 1010AHL | 220 | 60 | 200 | 260 | 172 | 270 | 5,8 |
