Hand Power Flange Facer MFM350
Ultra-portable, hand powered flange facer tool makes refacing easy and fast. It allows one operator to easily set up the machine and begin machining in just a few minutes.
Specifications
- Facing Diameter: 25.4 – 350mm
- Clamping Range: 25.4-304.5mm
Features:
- No power supply needed
- Quick set adjustable clamping
- Weights only 7kg
MFM350 Mini Flange Facer is a hand power driven tool for on site field machining.
The MFM350 is equipped with two different lead screws and provides two different feed rates for repairing raised face and flat pipe flanges or lens ring etc.
MFM350 Mini Flange Facer is a hand power driven tool on site field machining to machining flat facing of different type and diameters of flanges.
The MFM350 is supplied with 2 different lead screws for resurfacing damaged raised-face or lens-ring joint flanges.the weight only 7.5kg, but have a wide mounting range of 25.4 mm (1”) – 304.5mm (12”) ID and is capable of facing 25.4mm (1”) – 350mm (12”) OD flanges using standard half-inch cutting tools.
Hand power machine tool can be set up anywhere without the need for electric, hydraulic or air power.
| Facing Diameter Range | 1-13.7″ (25.4-350 mm) |
| Clamping Diameter Range | 1-12.0″ (25.4-304.5 mm) |
| Min Swing Diameter | 18.0″ (457.2 mm) |
| Tool Post travel | 3″ (70 mm) |
| Tool Post Swivel Angle | + / – 30⁰ |
| Machine Weight | 7.5 kg |
| Shipping Weight | 11.0 kg |
| Shipping Dimensions | 400×300×200 mm |

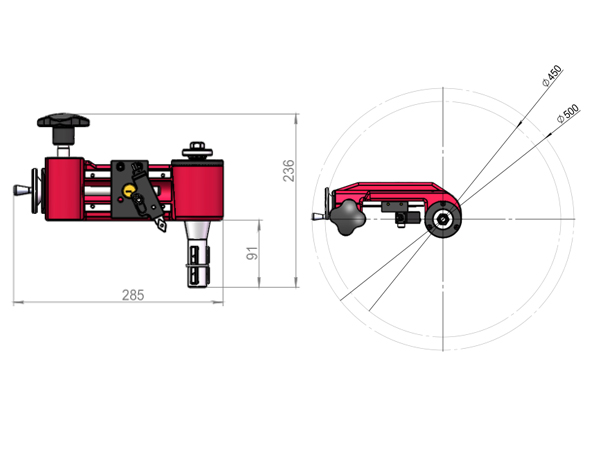

Operational Dimensions & Picture
