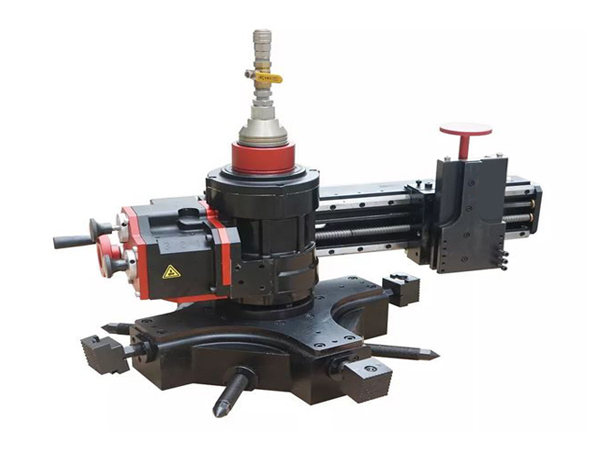

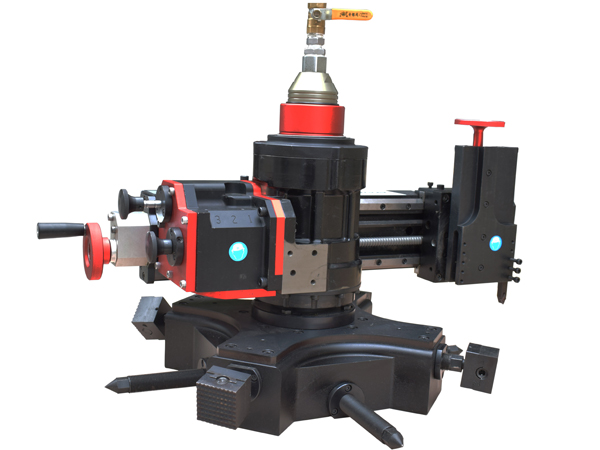

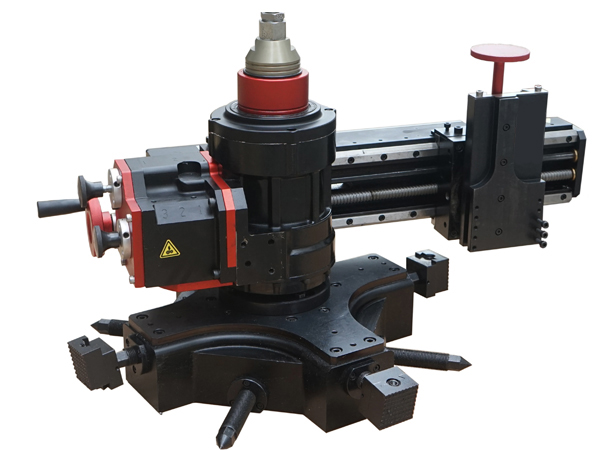

Flange Facer Machine FDG1000
An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld preparation, counter boring and heat exchanger repair.
Specifications
- Facing Diameter: 150-1000mm (6-40″)
- Clamping Range: 150-860mm (6-34″)
Features:
- Quick set adjustable clamping jaws
- Swivel toolpost for grooves and bevels
- Continuous groove geared facing and boring feeds
FDG1000 Flange Facer is a versatile flange facing machine that allows you to face, bevel, and turn pipe, valve, and pump flanges with easy, and can give machine shop accuracy. The two-piece mounting system makes setup and alignment of this machine quick and easy. It allows one operator to easily set up the machine and begin machining in just a few minutes.
Superior Machining
It can cut “O” Ring grooves, Lens ring, RTJ grooves, RF, weld preparations etc.
Lightweight & Precise Body
Modular structural design, high-intensity of material and processing technology, which makes sure the accuracy of processing.

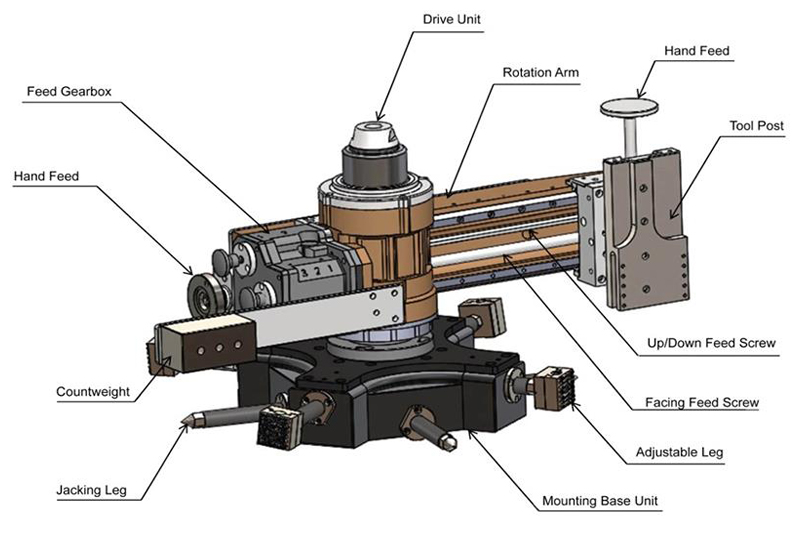

Base assembly
Equipped two pieces high strength mounting base unit with steel threaded inserts, and adjustable feet enable the machine to be installed perfectly level and central in any flange from 150mm (6″) to 1000mm (40″) in diameter.
Quick Set Up
Flange facing machine adopt independent design of quick model parts, therefor, it’s fast to mount it and machining. A experienced operator will finish the mounting processing within an hour according the rightful operating process.
Drive Power Unit
The machine is driven by a 1.7KW (2.2HP ) pneumatic motor. It can achieve cuts up to a maximum depth of 2mm (0.079″) on flanges without bolt holes or 0.2mm with holes and can achieve a flatness better than 0.02mm at 762mm (30″) diameter.
| Facing Diameter Range | 150-1000 mm (6.0-40.0″) |
| Clamping Diameter Range | 150-860 mm (6.0-34.0″) |
| Min. Swing Diameter | 790 mm (31.0″) |
| Tool Post Stroke | 80 mm (3.0″) |
| Tool Post Swivel Angle | + / – 23⁰ |
| R.P.M | 0-35 |
| Drive Power Unit-Pneumatic | 2.2hp (1.7kw) |
| Air Consumption / Supply Required | 1.93m³/min |
| Machine Weight | 128 kg |
| Shipping Weight | 145 kg |
Feed Rates
| In | Out | Up/down | |||
| Gear | mm/rev | Gear | mm/rev | Gear | mm/rev |
| 1 | 0.128 | 1 | 0.151 | 1 | 0.03 |
| 2 | 0.251 | 2 | 0.292 | 2 | 0.06 |
| 3 | 0.591 | 3 | 0.691 | 3 | 0.15 |

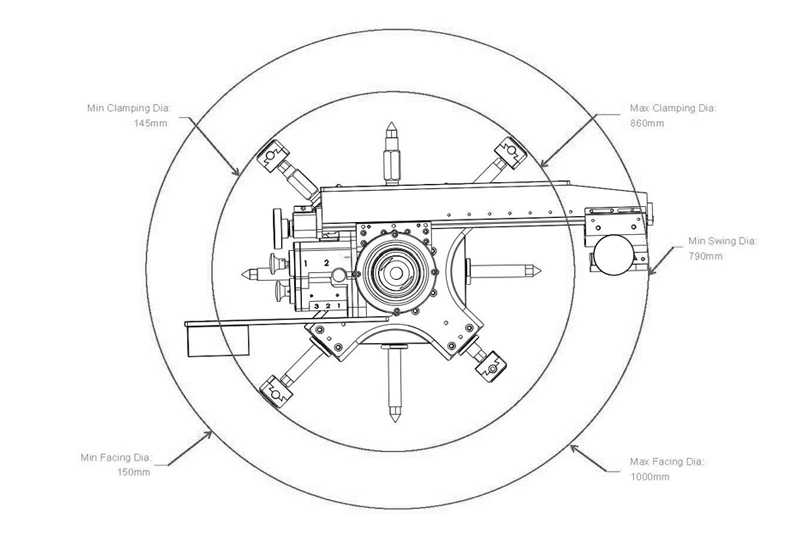

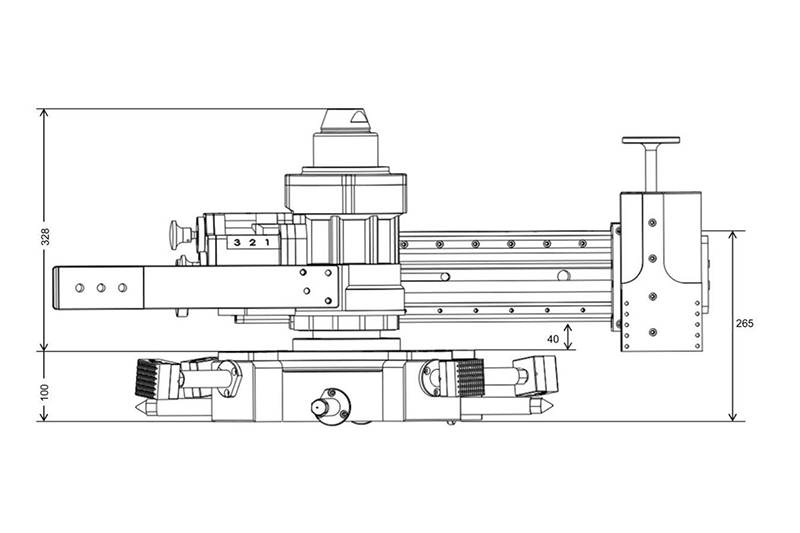

Operational Dimensions & Picture
