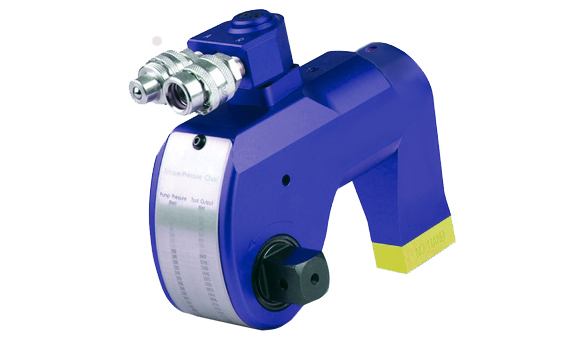

ART Series Square Drive Hydraulic Torque Wrench
- Constantly repeated accuracy ±3%
- Lightweight made of aluminium
- 360°x180° multi-positional swivel
- Quick release coupling connection 360° rotatable
- Easy changeable square & hex drives
- Torque pressure table graved on body
- Designed for heavy duty application
- Simple drive assembly, less downtime
| Model |
Square Size |
Torque Range, Nm |
Output Accuracy |
Repeatability |
Duty Cycle |

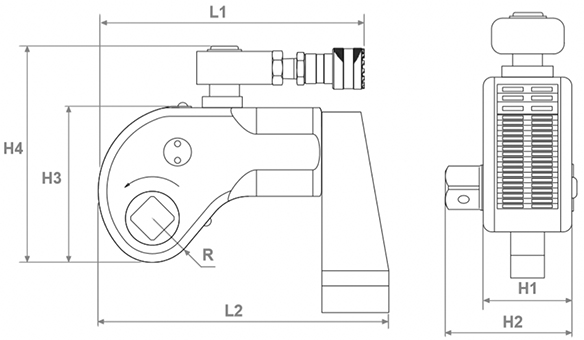

Dimensions, mm |
Weigh, kg |
| min |
max |
L1 |
L2 |
H1 |
H2 |
H3 |
H4 |
R |
| ART07 |
3/4" |
110 |
1100 |
±3% |
100% |
100% |
111 |
139 |
42 |
66 |
76 |
108 |
21 |
1.8 |
| ART1 |
13/4" |
120 |
1850 |
±3% |
100% |
100% |
145 |
174 |
50 |
72 |
96 |
131 |
26 |
2.5 |
| ART3 |
1 |
140 |
4500 |
±3% |
100% |
100% |
169 |
242 |
68 |
95 |
127 |
176.5 |
34 |
4.0 |
| ART5 |
11/2" |
740 |
7500 |
±3% |
100% |
100% |
202.5 |
283.5 |
80 |
123 |
149 |
198.5 |
39 |
7.0 |
| ART8 |
11/2" |
1000 |
10700 |
±3% |
100% |
100% |
216 |
309 |
90 |
137 |
167 |
216.5 |
47 |
9.1 |
| ART10 |
11/2" |
1500 |
15500 |
±3% |
100% |
100% |
237.5 |
340.5 |
100 |
142 |
182 |
231.5 |
51 |
13.1 |
| ART17 |
3/4" |
170 |
1700 |
±3% |
100% |
100% |
129 |
167 |
51 |
73 |
90 |
131 |
25 |
1.9 |
| ART20 |
21/2" |
2600 |
26600 |
±3% |
100% |
100% |
299.5 |
466.5 |
120 |
183 |
220 |
269.5 |
59 |
25.0 |
| ART25 |
21/2" |
3400 |
34700 |
±3% |
100% |
100% |
313 |
461 |
137 |
200 |
247 |
296.5 |
66 |
31.0 |
| ART35 |
21/2" |
4800 |
48700 |
±3% |
100% |
100% |
361.5 |
496.5 |
153 |
216 |
282 |
331.5 |
77 |
45.0 |
| ART45 |
1 |
450 |
4500 |
±3% |
100% |
100% |
167 |
218 |
68 |
98 |
121 |
170 |
34 |
4.8 |
| ART50 |
21/2" |
7200 |
72000 |
±3% |
100% |
100% |
400 |
516 |
160 |
223 |
291 |
341 |
81 |
87.0 |
| ART100 |
11/2" |
1000 |
10000 |
±3% |
100% |
100% |
223 |
293 |
92 |
135 |
163 |
211 |
46 |
9.0 |
| ART150 |
11/2" |
1500 |
15000 |
±3% |
100% |
100% |
246 |
323 |
100 |
141 |
177 |
255 |
50 |
14.8 |
| ART370 |
21/2" |
3700 |
37000 |
±3% |
100% |
100% |
329 |
432 |
137 |
104 |
240 |
288 |
66 |
32.5 |
