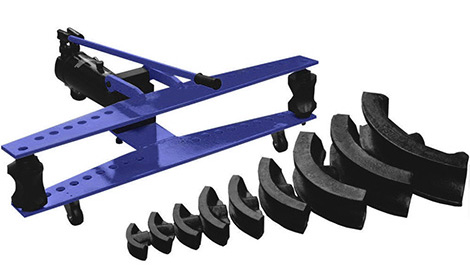

HHW Series Hydraulic Manual Pipe Benders with Wheels
- Hydraulic pipe bender provides easier bending than manual mechanical bender.
- Bending range up to 4”, portable design for construction.
- Cold bending pipes only in one turn. Up to 90 degree, hydraulic equipment makes more precise bending.
- Fast set up and disassembly ,convenient removing with bottom wheels.
- Friendly use for European Environmental Standard with CE.
| Model | HHW-2 | HHW-3 | HHW-4 |
| Pipe wall thickness | 2.75-4.5 mm | 2.75-5 mm | 2.75-6 mm |
| Max. stroke | 250 mm | 290 mm | 370 mm |
| Packing size | 730×320×200 mm | 930×400×210 mm | 1180×460×230 mm |
| Weight | 49 kg | 98 kg | 149 kg |

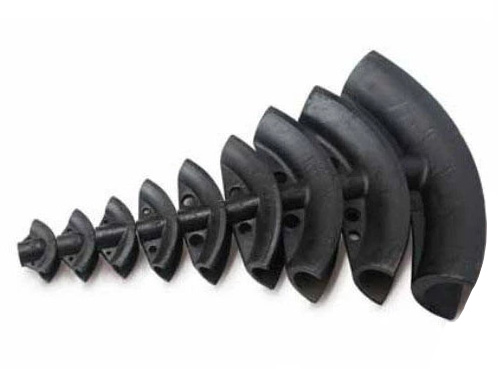

Accessories
Bending dies for HHW-2: ½", ¾", 1", 1¼", 1½", 2"
Bending dies for HHW-3: ½", ¾", 1", 1¼", 1½", 2", 2½", 3"
Bending dies for HHW-4: ½", ¾", 1", 1¼", 1½", 2", 2½", 3", 4"

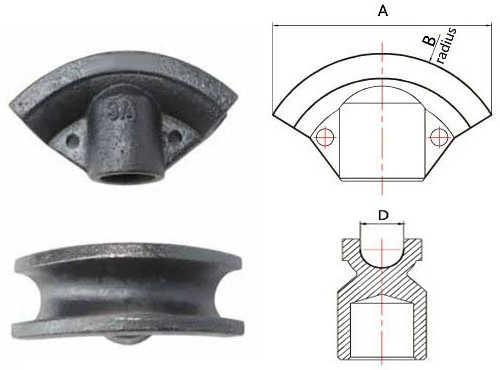

More Information of Pipe Bending Dies
| Bending Dies Size (Inch) | A (mm) | B (mm) | Minimum Bend Radius (mm) | D (mm) | Pipe Schedule | Wall Thickness (mm) | |||
| 1/2" | 115 | 67.5 | 50.2 | 22 | 40 | 2.8 | |||
| 80 | 3.7 | ||||||||
| 3/4" | 131 | 84.5 | 66 | 28 | 40 | 2.9 | |||
| 80 | 3.9 | ||||||||
| 1" | 147 | 96.5 | 75.4 | 34 | 40 | 3.4 | |||
| 80 | 4.5 | ||||||||
| 1 1/4" | 195 | 134 | 108.7 | 43 | 40 | 3.6 | |||
| 1 1/2" | 242 | 162 | 133.5 | 50 | 40 | 3.7 | |||
| 2" | 297 | 238 | 199.2 | 62 | 40 | 3.9 | |||
| 2 1/2" | 380 | 257 | 209 | 79 | 40 | 4.5 | |||
| 3" | 436 | 390 | 335 | 90 | 40 | 4.5 | |||
| 4" | 555 | 450 | 400 | 110 | 40 | 5 | |||
